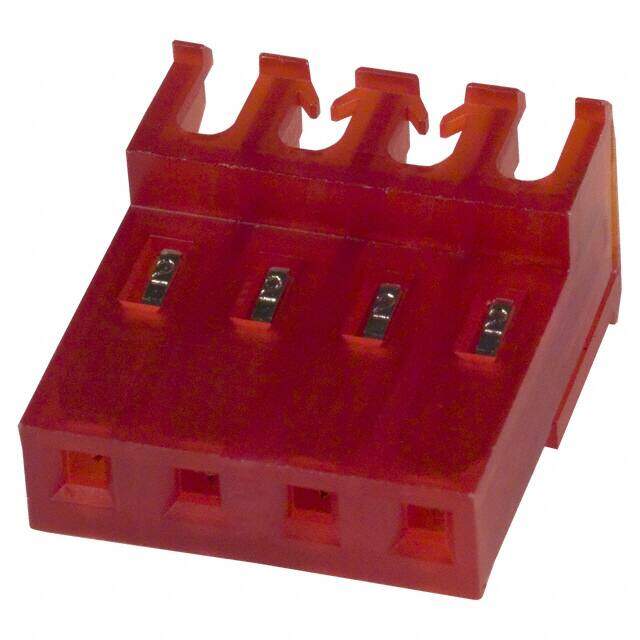

3-640606-4 image
Favorite
3-640606-4 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description CONN RECEPT 4POS 22AWG MTA156
PDF
/
Inventory: 3154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)

Physical

Contact Material COPPER ALLOY
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Nylon
Underplate Material Nickel

Technical

Packaging Bulk
Published 2008
Series MTA-156
JESD-609 Code e3
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, IDT
Connector Type Receptacle
Number of Positions 4
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Color Red
Number of Rows 1
Voltage - Rated 600V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.156 3.96mm
Total Number of Contacts 4
Current Rating 7A
Contact Finish Tin
Voltage - Rated AC 600V
Approval Agency CSA
Lead Pitch 3.96mm
Contact Gender Female
Housing Color Red, White
Operating Supply Voltage 600V
Wire Gauge 22 AWG
ELV Compliant
Wire/Cable Type Discrete
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 7A
Circuit Application Signal
Insulation Diameter 2.41 mm
Wire Type Discrete or Ribbon Cable
Contact Retention With
Mating Alignment Without

Dimensions

Height 9.779mm
Length 15.8496mm
Width 9.78mm
Contact Finish Thickness 80.0μin 2.03μm
Plating Thickness 5.08μm

Compliance

RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
