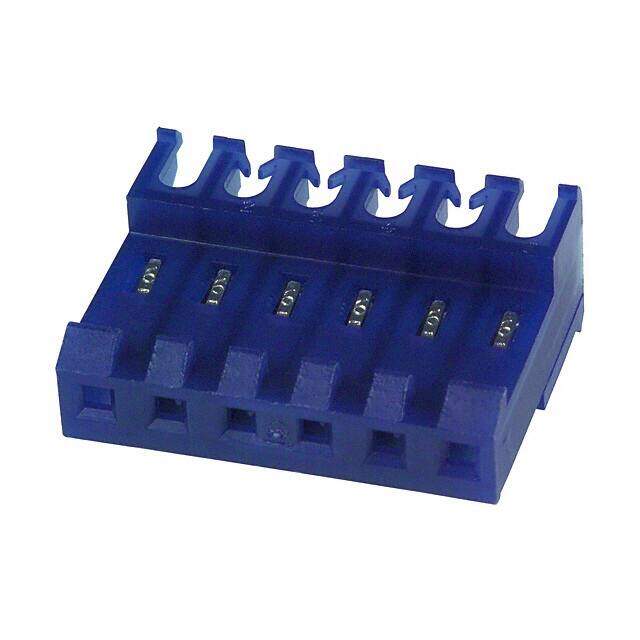

3-640595-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT 6POS 26AWG MTA156
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.627758
≥1 USD $0.627758
≥10 USD $0.592224
≥100 USD $0.558702
≥500 USD $0.527072
≥1000 USD $0.497241
Inventory: 7022
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 80μm
Contact Finish Thickness 80.0μin 2.03μm
Length 23.77mm
Height 9.78mm
Technical
Contact Retention With
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.413 mm
Number of Power Positions 6
Contact Current Rating 7A
Sealable No
Cable Termination IDC
Wire/Cable Gauge 26 AWG
Wire/Cable Type Discrete
Plating Tin
Max Voltage Rating (AC) 600V
ELV Compliant
Wire Gauge 26 AWG
Contact Resistance 3mOhm
Operating Supply Voltage 600V
Housing Color White, Blue
Contact Gender Female
Number of Contacts 6
Lead Pitch 3.96mm
Shrouding No
Approval Agency CSA
Voltage - Rated AC 600V
Contact Finish Tin
Current Rating 7A
Depth 9.78mm
Orientation Right Angle
Pitch 0.156 3.96mm
Contact Type Female Socket
Fastening Type Locking Ramp
Gender Receptacle
Number of Rows 1
Color Blue
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 6
Connector Type Receptacle
Termination IDC, IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
Series MTA-156
Published 2008
Packaging Bulk
Physical
Underplate Material Nickel
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 15 Weeks
