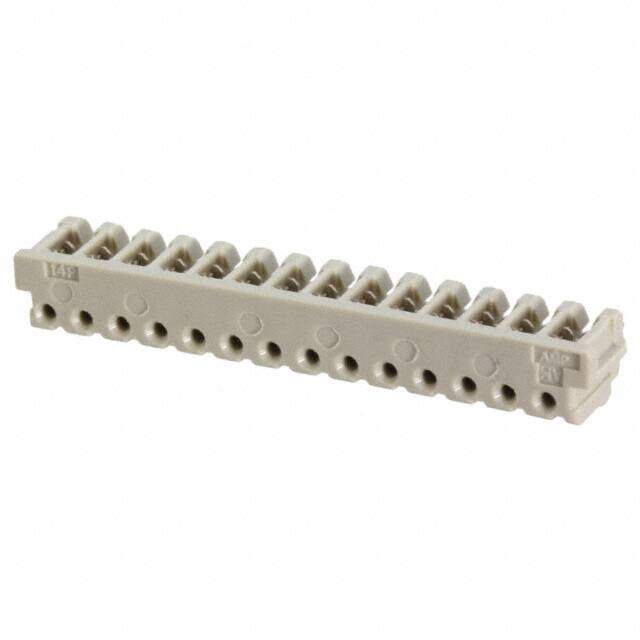

3-179694-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings CT MT REC ASSY 14P GRAY
PDF
/
Inventory: 5874
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Bulk
Published 1997
Series CT
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 14
Color Gray
Number of Rows 1
HTS Code 8536.69.40.40
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 14
Current Rating 3A
Reference Standard UL, CSA
Contact Finish Tin
Reliability COMMERCIAL
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Housing Color Grey
Rated Current (Signal) 3A
Contact Resistance 20mOhm
Wire Gauge 24 AWG
ELV Compliant
Polarization Key POLARIZED HOUSING
Wire/Cable Gauge 24 AWG
Cable Termination IDC
Sealable No
Mating Retention With
Wire Type Discrete
Contact Design PREASSEM CONN
Insulation Diameter-Min 0.037 inch
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
