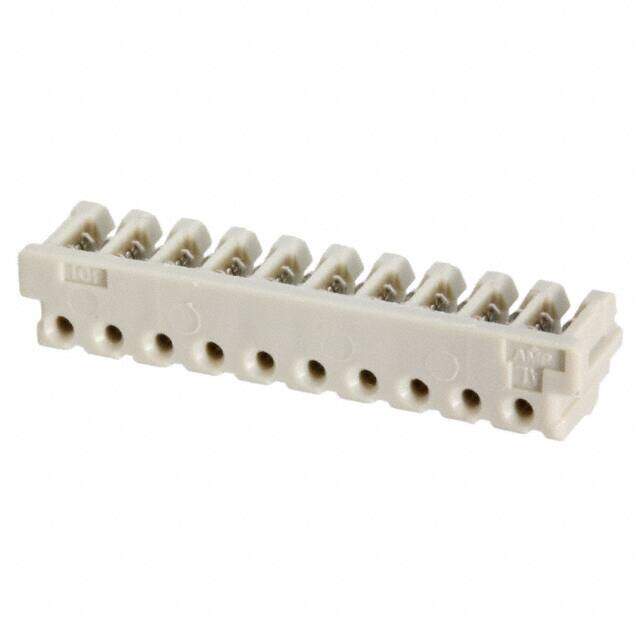

3-179694-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 2mm CT MT REC ASSY 10P GRAY
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.3828
≥100 USD $0.381568
≥500 USD $0.371888
≥1000 USD $0.319
≥3000 USD $0.28857
Inventory: 667
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Bronze
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Bulk
Published 1997
Series CT
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Color Gray
Number of Rows 1
HTS Code 8536.69.40.40
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 10
Current Rating 3A
Reference Standard UL, CSA
Contact Finish Tin
Reliability COMMERCIAL
Body Length or Diameter 0.866 inch
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Housing Color Grey
Rated Current (Signal) 3A
Contact Resistance 20mOhm
Wire Gauge 24 AWG
ELV Compliant
Polarization Key POLARIZED HOUSING
Wire/Cable Gauge 24 AWG
Cable Termination IDC
Sealable No
Mating Retention With
Wire Type Discrete
Contact Design PREASSEM CONN
Insulation Diameter-Min 0.037 inch
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
