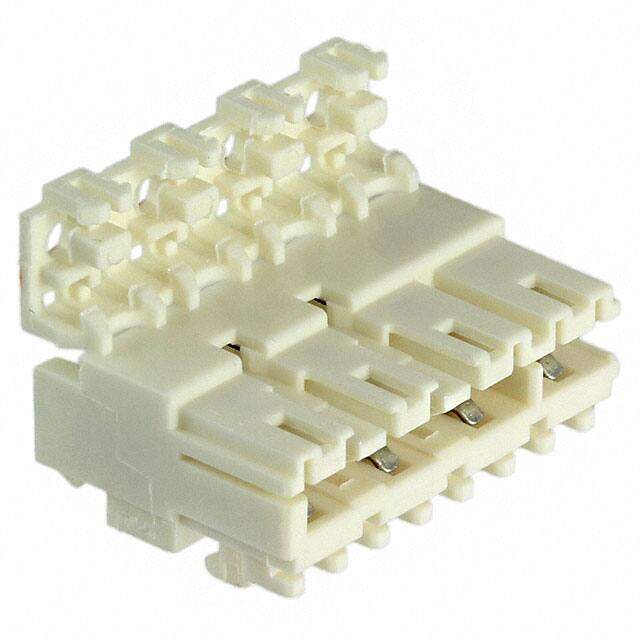

3-1740533-4 image
Favorite
3-1740533-4 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description Conn Power F 4 POS 5mm IDT RA Cable Mount 5 Terminal 1 Port
PDF
/
Inventory: 8808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

PCB Thickness 1.4986mm
Plating Thickness 6μm
Length 19.9mm
Height 7.2898mm

Technical

Preloaded Yes
Wire Type Discrete
Wire/Cable Diameter 2.2098 mm
Insulation Diameter 2.4 mm
Number of Power Positions 4
Circuit Application Signal
Contact Current Rating 6A
Cable Termination IDC
Wire/Cable Gauge 18 AWG
Number of Ports 1
Wire/Cable Type Discrete
ELV Compliant
Operating Supply Voltage 250V
Housing Color Natural
Number of Contacts 4
Contact Finish Tin
Current Rating 6A
Depth 14.05mm
Orientation Right Angle
Pitch 0.197 5.00mm
Contact Type Female Blade Socket
Fastening Type Locking Ramp
Number of Rows 1
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Number of Positions 4
Connector Type Receptacle
Termination IDC
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mates to PCB
Series DuoPlug
Published 2007
Packaging Bulk

Physical

PCB Mounting Orientation Right Angle
Housing Material Polyamide
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Plating Tin
Contact Material Copper

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 15 Weeks
