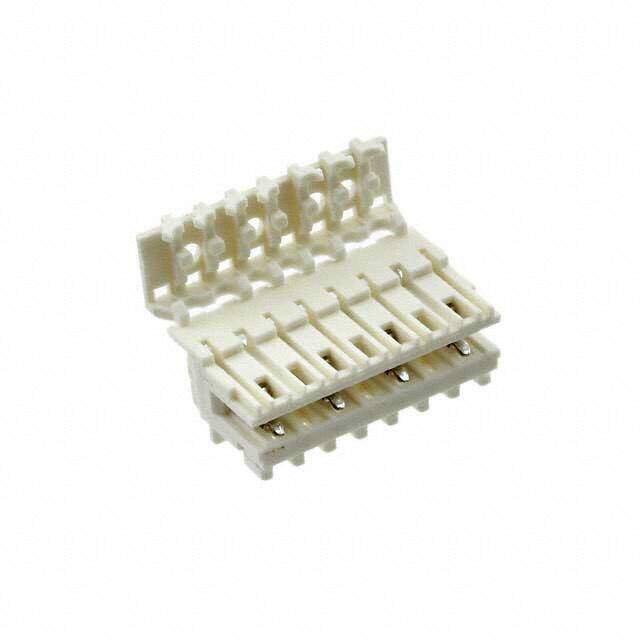

3-1534798-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn IDC Connector F 7 POS 2.5mm IDT RA Cable Mount
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5368
≥1 USD $0.5368
≥10 USD $0.51568
≥100 USD $0.513216
≥500 USD $0.495968
≥1000 USD $0.415888
≥3000 USD $0.38991
Inventory: 13641
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material CuSn
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Polyamide
PCB Mounting Orientation Right Angle
Technical
Packaging Bulk
Published 2004
Series DuoPlug
Feature Mates to PCB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 7
Max Operating Temperature 110°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 1
Contact Type Female Blade Socket
Pitch 0.098 2.50mm
Orientation Right Angle
Depth 7.3mm
Current Rating 2A
Contact Finish Tin
Number of Contacts 7
Housing Color Natural
Operating Supply Voltage 250V
Wire Gauge 22-24 AWG
ELV Compliant
Wire/Cable Type Discrete
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 22 AWG
Cable Termination IDC
Contact Current Rating 2A
Circuit Application Signal
Insulation Diameter 1.6 mm
Wire Type Discrete
Preloaded Yes
Dimensions
Height 7.2898mm
Length 19.9mm
Plating Thickness 6μm
PCB Thickness 1.4986mm
Compliance
RoHS Status RoHS Compliant
