3-111196-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

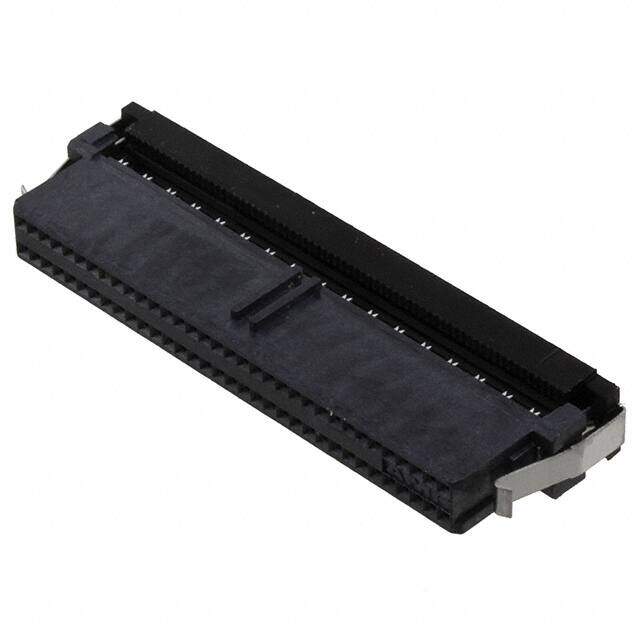

WIRE-BOARD CONNECTOR RECEPTACLE 68POS, 1.27MM
PDF
/
Buying Options
Total Price: USD $17.17
Unit Price: USD $17.1688
≥1 USD $17.1688
≥10 USD $16.808
≥100 USD $14.03644
Inventory: 448
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 30.0μin 0.76μm
Width 6.45mm
Length 49.784mm
Height 12.319mm
Technical
Mating Connector Lock With
Wire Type Ribbon Cable
Circuit Application Signal
Contact Current Rating 500mA
Sealable No
Cable Termination IDC
Wire Gauge (Min) 30 AWG
Wire Gauge (Max) 32 AWG
Wire/Cable Type Ribbon
Max Voltage Rating (AC) 30V
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Wire Gauge 30-32 AWG
Contact Resistance 30mOhm
Rated Current (Signal) 0.5A
Operating Supply Voltage 30V
UL Flammability Code 94V-0
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 500mA
Depth 6.45mm
Orientation Right Angle
Total Number of Contacts 68
Pitch 0.050 1.27mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Latch Lock
Additional Feature AMP-LATCH
Voltage - Rated 30V
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 68
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through
JESD-609 Code e3
Series AMPMODU System 50
Published 2005
Packaging Bulk
Physical
Shape Rectangular
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold, Tin
Contact Material Copper
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 9 Weeks
Alternative Model
