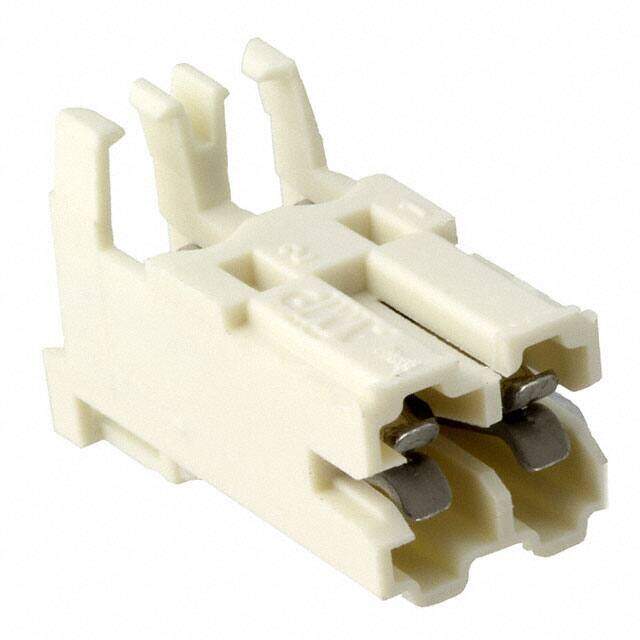

2-282042-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
AMP MONO-SHAPE 2 POS P.C.B.CON
PDF
/
Inventory: 5398
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material Brass
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
PCB Mount Retention Without
PCB Mount Alignment Without
Technical
Packaging Bulk
Published 2004
Series Mark I
Feature Mates to PCB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 2
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Natural
Number of Rows 1
Contact Type Female Blade Socket
Pitch 0.197 5.00mm
Current Rating 6A
Contact Finish Tin
Number of Contacts 2
Housing Color Blue, Natural
Operating Supply Voltage 220V
ELV Compliant
Plating Tin
Wire/Cable Type Discrete
Cable Termination IDC
Sealable No
Contact Current Rating 6A
Circuit Application Power
Mating Retention With
Wire Type Discrete
Dimensions
Length 9.9mm
Plating Thickness 2μm
Contact Finish Thickness - Mating 2μm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
