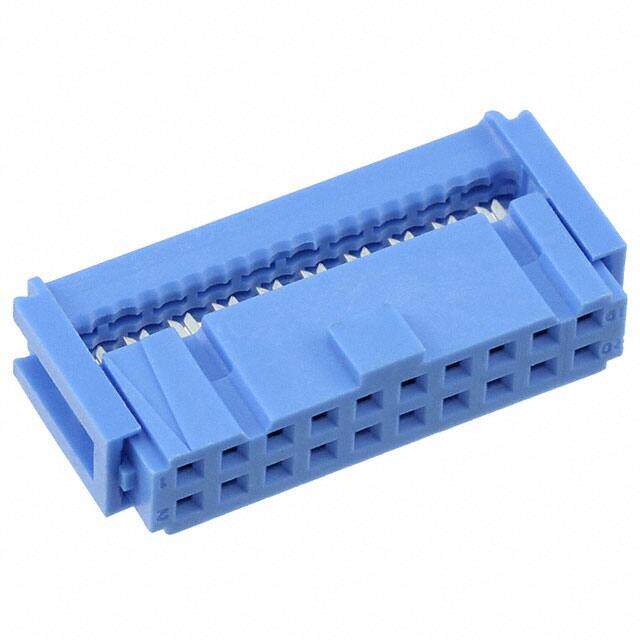

2-1658527-3 image
Favorite
2-1658527-3 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description AMP FROM TE CONNECTIVITY 2-1658527-3 Wire-To-Board Connector, 622 Series, 20 Contacts, Receptacle, 2.54 mm, IDC / IDT, 2 Rows
PDF
/
Buying Options
Total Price: USD $2.99
Unit Price: USD $2.992
≥1 USD $2.992
≥10 USD $2.66816
≥100 USD $2.654784
≥500 USD $2.62768
≥1000 USD $2.36896
≥3000 USD $2.355338
Inventory: 4042
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 29.9mm

Technical

Mating Connector Lock Without
Wire Type Ribbon Cable
Circuit Application Signal
Cable Termination IDC
Number of Poles 20
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
ELV Compliant
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 26-28 AWG, Stranded or Solid
UL Flammability Code 94V-0
Lead Pitch 2.54mm
Contact Finish Gold
Current Rating 1A
Depth 7.05mm
Orientation Right Angle
Total Number of Contacts 20
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Number of Rows 2
Color Blue
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Connector Type Receptacle
ECCN Code EAR99
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series 622
Published 2008
Packaging Bulk

Physical

Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 11 Weeks
