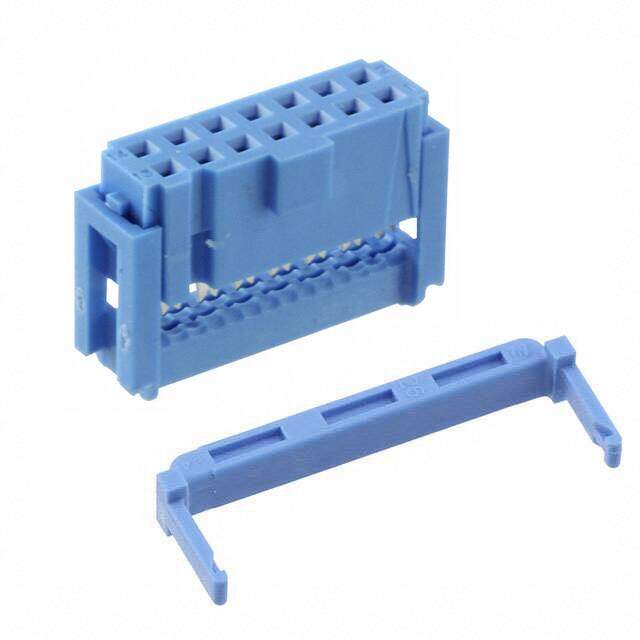

2-1658527-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 14 POS RECPT 30AU
PDF
/
Buying Options
Total Price: USD $3.59
Unit Price: USD $3.5904
≥1 USD $3.5904
≥10 USD $3.151025
≥100 USD $2.840895
≥500 USD $2.334728
Inventory: 4777
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Length 22.28mm
Technical
Mating Connector Lock Without
Wire Type Ribbon Cable
Circuit Application Signal
Contact Current Rating 1A
Cable Termination IDC
Number of Poles 14
Wire/Cable Gauge -28 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1GOhm
Wire Gauge 26-28 AWG, Stranded or Solid
Rated Current (Signal) 1A
UL Flammability Code 94V-0
Contact Gender Female
Lead Pitch 2.54mm
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 1A
Depth 7.05mm
Orientation Right Angle
Total Number of Contacts 14
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Additional Feature POLARIZED
Number of Rows 2
Color Blue
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key, Strain Relief
Series 622
Published 1998
Packaging Bulk
Physical
Housing Material Thermoplastic
Material Glass, Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 5 Weeks
