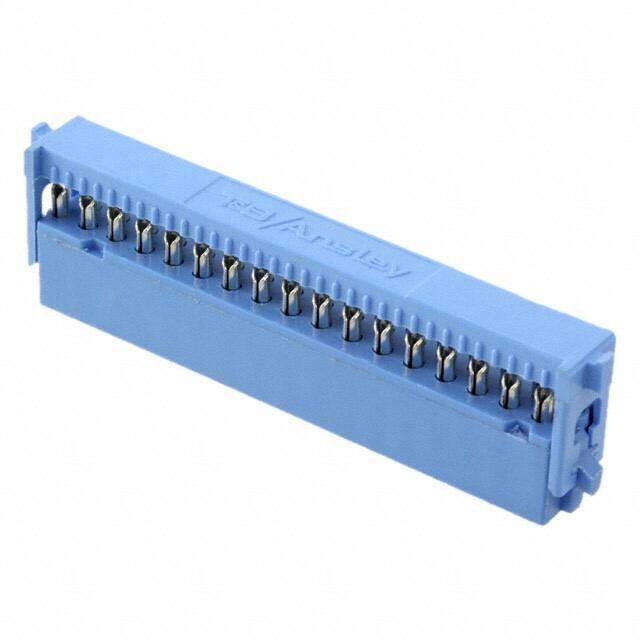

2-1437021-6
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount
PDF
/
Buying Options
Total Price: USD $13.97
Unit Price: USD $13.9744
≥1 USD $13.9744
≥10 USD $13.68488
≥100 USD $13.321317
≥500 USD $12.666025
≥1000 USD $11.428604
≥3000 USD $11.355775
Inventory: 598
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Technical
Contact Design PREASSEM CONN
Wire Type Discrete or Ribbon Cable
Cable Termination IDC
Dielectric Withstanding Voltage 700VAC V
Polarization Key POLARIZED HOUSING
Termination Type IDC
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Wire Gauge 28 AWG
Rated Current (Signal) 1A
Body Depth 0.487 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -55°C
Body Length or Diameter 1.876 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Reach Compliance Code unknown
Total Number of Contacts 34
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature POLARIZED
Number of Rows 2
Color Blue
Number of Positions 34
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2009
Packaging Bulk
Physical
Mounting Option 1 LOCKING
Insulation Material THERMOPLASTIC
Mounting Type Free Hanging (In-Line)
Contact Material BERYLLIUM COPPER
Supply Chain
Factory Lead Time 12 Weeks
