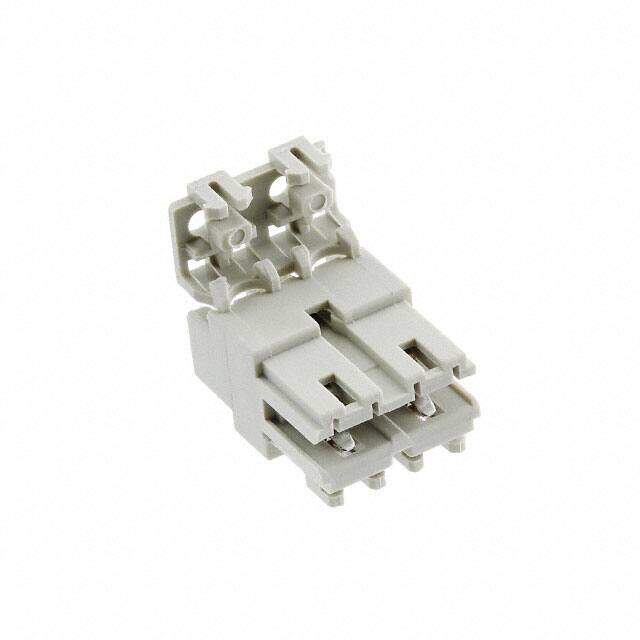

2-1394918-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn Power F 2 POS 5mm Solder ST Thru-Hole 2 Terminal 1 Port
PDF
/
Inventory: 998
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
PCB Mounting Orientation Right Angle
Technical
Packaging Tray
Published 2011
Series DuoPlug
Feature Mates to PCB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination IDC
Connector Type Receptacle
Number of Positions 2
Max Operating Temperature 110°C
Min Operating Temperature -40°C
Color Gray
Number of Rows 1
Contact Type Female Socket
Pitch 0.197 5.00mm
Orientation Right Angle
Depth 7.3mm
Current Rating 6A
Contact Finish Tin
Approval Agency UL
Number of Contacts 2
Housing Color Grey
Operating Supply Voltage 250V
ELV Compliant
Wire/Cable Type Discrete
Number of Ports 1
Wire/Cable Gauge 20 AWG
Cable Termination IDC
Contact Current Rating 6A
Circuit Application Signal
Number of Power Positions 2
Insulation Diameter 2.4 mm
Wire/Cable Diameter 2.2098 mm
Wire Type Discrete
Preloaded Yes
Dimensions
Height 7.2898mm
Length 9.9mm
PCB Thickness 1.4986mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
