2-111626-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

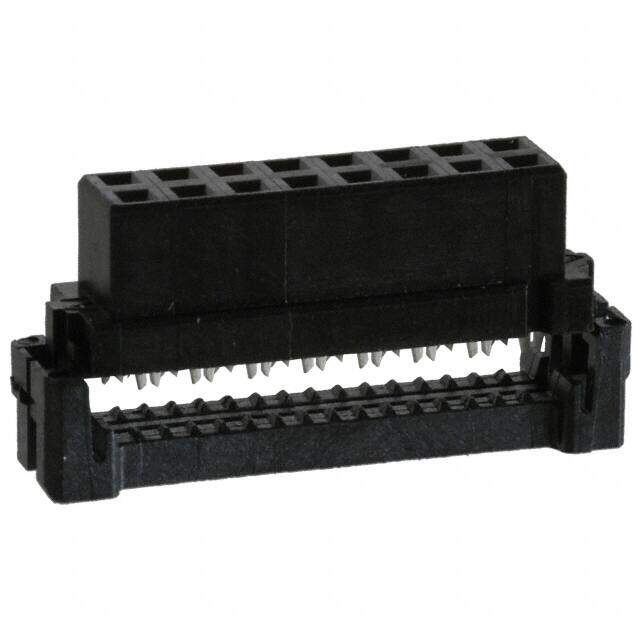

CONN RCPT 16POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $6.89
Unit Price: USD $6.892808
≥1 USD $6.892808
≥10 USD $6.502652
≥100 USD $6.134572
≥500 USD $5.787332
≥1000 USD $5.459754
Inventory: 2483
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Bronze
Mount Cable, Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyester
Technical
Packaging Bulk
Published 2006
Series AMP-Latch
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 16
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Voltage - Rated 125V
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.079 2.00mm
Total Number of Contacts 16
Orientation Right Angle
Current Rating 500mA
Contact Finish Gold
Reliability COMMERCIAL
Approval Agency UL
Lead Pitch 2mm
Contact Gender Female
UL Flammability Code 94V-0
Body Depth 0.403 inch
Operating Supply Voltage 125V
Rated Current (Signal) 0.5A
Contact Resistance 25mOhm
Wire Gauge 28 AWG
Insulation Resistance 5GOhm
Row Spacing 0.079 (2.00mm)
ELV Compliant
Max Voltage Rating (AC) 125V
Termination Type IDC
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 300VAC V
Wire/Cable Type Ribbon
Durability 150 Cycles
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Insertion Force-Max 1.668 N
Withdrawl Force-Min .139 N
Contact Current Rating 500mA
Circuit Application Signal
Insulation Diameter 870 μm
Wire Type Ribbon Cable
Mating Connector Lock Without
Dimensions
Height 8.48106mm
Length 21.18106mm
Width 5.16mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 760 nm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
