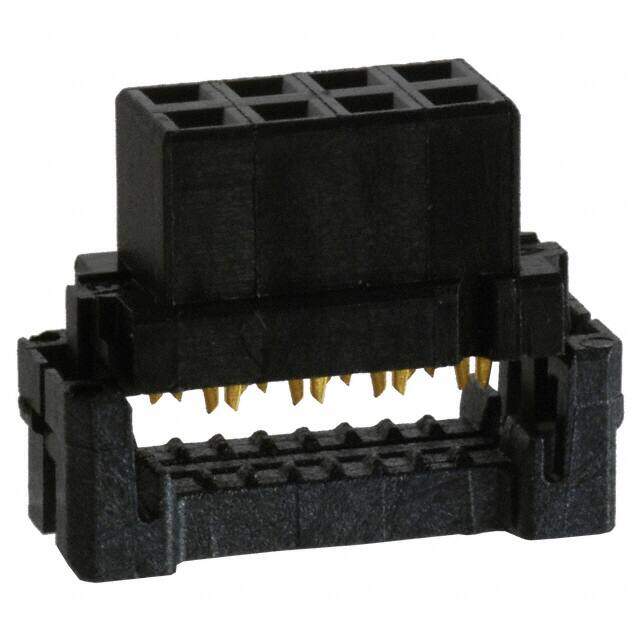

2-111626-4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 8POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $3.58
Unit Price: USD $3.5816
≥1 USD $3.5816
≥10 USD $3.13632
≥100 USD $3.053952
≥500 USD $2.98848
≥1000 USD $2.8908
Inventory: 2364
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Plating Thickness 760 nm
Contact Finish Thickness 30.0μin 0.76μm
Width 5.16mm
Length 13.18mm
Height 8.48106mm
Technical
Mating Connector Lock Without
Wire Type Ribbon Cable
Insulation Diameter 870 μm
Circuit Application Signal
Contact Current Rating 500mA
Withdrawl Force-Min .139 N
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Durability 150 Cycles
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 300VAC V
Polarization Key POLARIZED HOUSING
Termination Type IDC
Max Voltage Rating (AC) 125V
ELV Compliant
Row Spacing 0.079 (2.00mm)
Insulation Resistance 5GOhm
Wire Gauge 28 AWG
Contact Resistance 25mOhm
Rated Current (Signal) 0.5A
Operating Supply Voltage 125V
UL Flammability Code 94V-0
Contact Gender Female
Lead Pitch 2mm
Approval Agency UL
Reliability COMMERCIAL
Contact Finish Gold
Current Rating 500mA
Depth 5.16mm
Orientation Right Angle
Total Number of Contacts 8
Pitch 0.079 2.00mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Voltage - Rated 125V
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through
Series AMP-Latch
Published 2006
Packaging Bulk
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 9 Weeks
