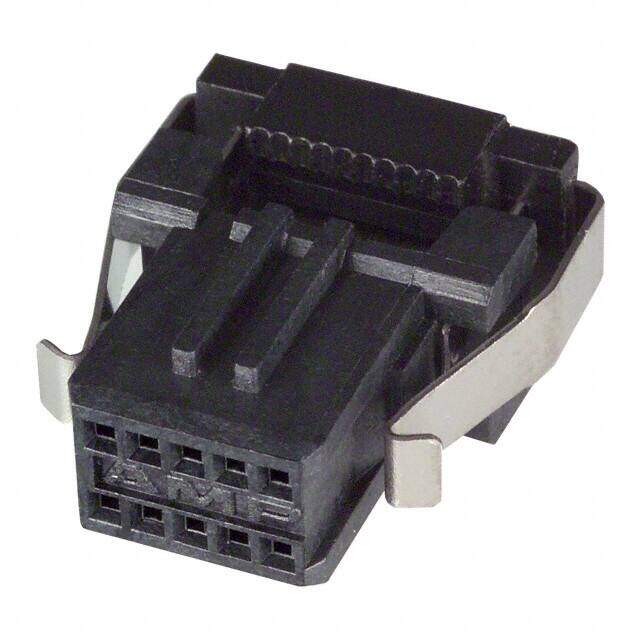

2-111196-5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 10P IDC 30-32AWG GOLD
PDF
/
Buying Options
Total Price: USD $6.78
Unit Price: USD $6.776
≥1 USD $6.776
≥10 USD $5.90656
≥100 USD $5.751328
≥500 USD $5.59592
≥1000 USD $5.253996
≥3000 USD $5.222906
Inventory: 2713
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper
Contact Plating Gold, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Shape Rectangular
Technical
Packaging Bulk
Published 2005
Series AMPMODU System 50
JESD-609 Code e3
Feature Feed Through
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, IDT
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Voltage - Rated 30V
Additional Feature AMP-LATCH
Fastening Type Latch Lock
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.050 1.27mm
Total Number of Contacts 10
Orientation Right Angle
Depth 6.45mm
Current Rating 500mA
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Lead Pitch 1.27mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
UL Flammability Code 94V-0
Operating Supply Voltage 30V
Rated Current (Signal) 0.5A
Contact Resistance 30mOhm
Wire Gauge 30-32 AWG
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Max Voltage Rating (AC) 30V
Wire/Cable Type Ribbon
Wire Gauge (Max) 32 AWG
Wire Gauge (Min) 30 AWG
Cable Termination IDC
Sealable No
Contact Current Rating 500mA
Circuit Application Signal
Wire Type Ribbon Cable
Mating Connector Lock With
Dimensions
Height 12.319mm
Length 12.954mm
Width 6.45mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 5.08μm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
