1971151-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

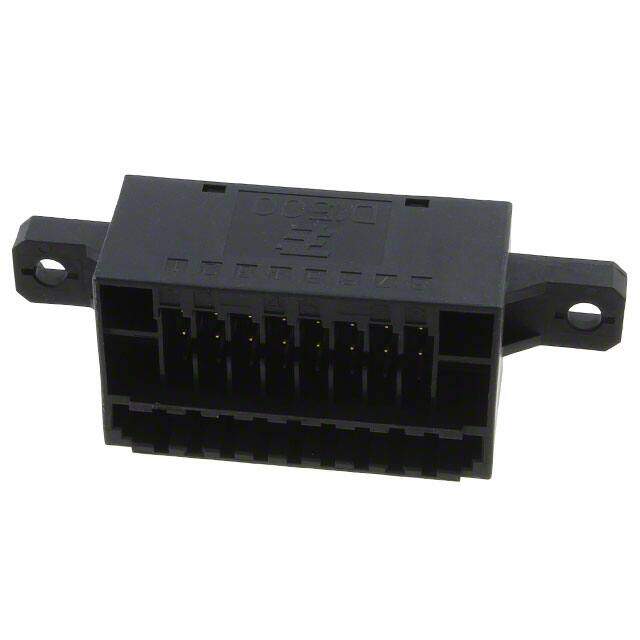

CONN JUNCTION 34POS
PDF
/
Buying Options
Total Price: USD $33.55
Unit Price: USD $33.5456
≥1 USD $33.5456
≥10 USD $27.68656
≥100 USD $25.734658
≥500 USD $24.314717
≥1000 USD $23.604777
Inventory: 179
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Brass
Contact Plating Gold
Mounting Type Panel Mount
Housing Material PBT
PCB Mount Retention Without
Technical
Packaging Tray
Published 2009
Series D-1500T
Feature Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Junction Box
Number of Positions 34
Max Operating Temperature 221°C
Min Operating Temperature -67°C
Number of Rows 4
Contact Type Tab
Pitch 3.4798mm
Shielding Unshielded
Current Rating 5A
Approval Agency UL
Number of Contacts 34
Housing Color Black
Operating Supply Voltage 250V
ELV Compliant
Sealable No
Contact Current Rating 5A
Halogen Free Halogen Free
Mating Retention Without
Contact Retention Without
Mating Alignment With
Preloaded Yes
VDE Tested No
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
