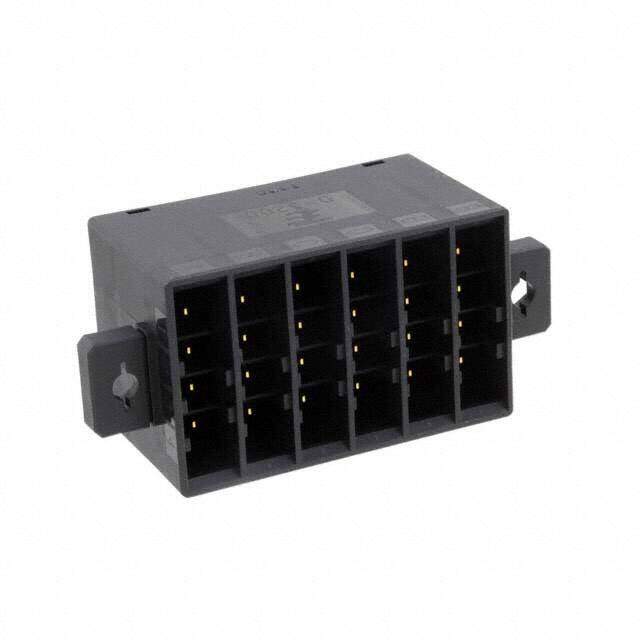

1827691-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn Power PL 24 POS 7.62mm ST Panel Mount 24 Terminal 1 Port Tray
PDF
/
Buying Options
Total Price: USD $19.31
Unit Price: USD $19.3072
≥1 USD $19.3072
≥10 USD $15.93328
≥100 USD $14.809397
≥500 USD $13.992378
≥1000 USD $13.686015
≥3000 USD $13.583856
Inventory: 170
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness 15.0μin 0.38μm
Width 29.24mm
Length 65mm
Height 26.9mm
Technical
VDE Tested No
Preloaded Yes
Mating Alignment With
Contact Retention Without
Wire Type Discrete
Mating Retention With
Halogen Free Halogen Free
Sealable No
Cable Termination Crimp
Wire/Cable Type Discrete
ELV Compliant
Row Spacing 0.300 (7.62mm)
Operating Supply Voltage 600V
Housing Color Black
Number of Contacts 24
Contact Finish Gold
Current Rating 10A
Orientation Straight
Pitch 0.200 5.08mm
Contact Type Tab
Number of Rows 6
Color Black
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 24
Connector Type Plug
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mounting Flange
Series Dynamic D-3200
Published 2007
Packaging Bulk
Physical
Housing Material Polyester
Number of Pins 24
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 19 Weeks
