1658623-6
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

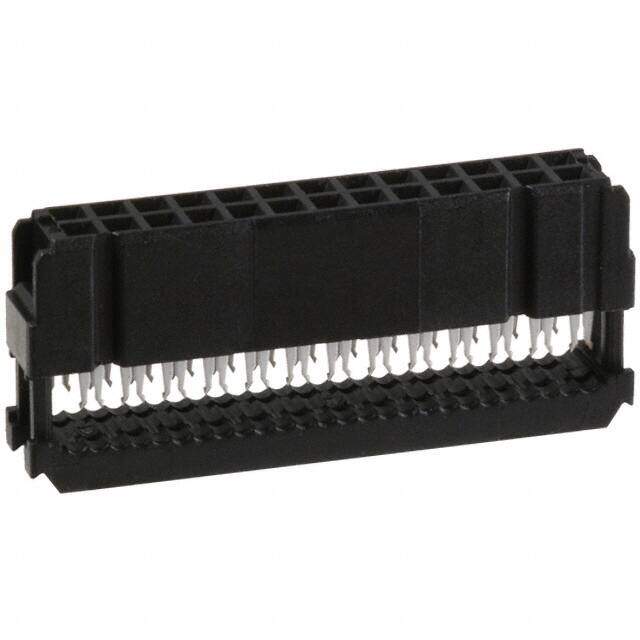

CONN RCPT 26POS IDC 26-28AWG
PDF
/
Buying Options
Total Price: USD $2
Unit Price: USD $1.9976
≥1 USD $1.9976
≥10 USD $1.75208
≥100 USD $1.60754
≥500 USD $1.300464
≥1000 USD $1.146939
Inventory: 7430
Minimum: 1
-
+
Technical Details
Technical
Total Number of Contacts 26
Orientation Vertical
Depth 15.97mm
Current Rating 1A
Reference Standard UL
Contact Finish Gold or Gold-Palladium
Reliability COMMERCIAL
Approval Agency UL
Contact Gender Female
UL Flammability Code 94V-0
Operating Supply Voltage 250V
Rated Current (Signal) 1A
Contact Resistance 15mOhm
Wire Gauge 26-28 AWG
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Max Voltage Rating (AC) 250V
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 1000VDC V
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Durability 150 Cycles
Max Voltage Rating (DC) 250V
Cable Termination IDC
Insertion Force-Max 3.336 N
Withdrawl Force-Min .417 N
Contact Current Rating 1A
Circuit Application Signal
Insulation Diameter 939.8 μm
Wire Type Ribbon Cable
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Voltage - Rated 250V
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 26
Connector Type Receptacle
Termination IDT, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through
JESD-609 Code e3
Series AMP-Latch
Published 1999
Packaging Bulk
Mating Connector Lock With
Physical
PCB Mount Retention Without
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Through Hole
Contact Plating Tin
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 5 Weeks
Dimensions
Height 15.16mm
Length 37.58946mm
Width 6.1mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 760 nm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
