1658622-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

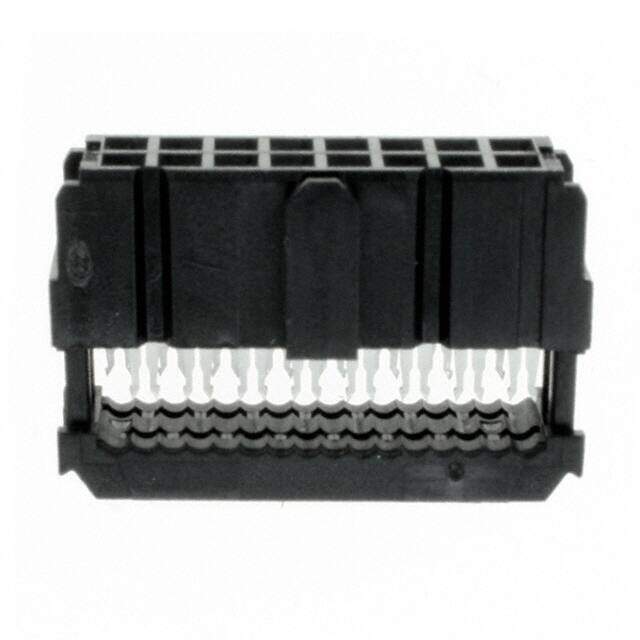

CONN IDC SKT 16POS W/POL GOLD
PDF
/
Buying Options
Total Price: USD $1.51
Unit Price: USD $1.5136
≥1 USD $1.5136
≥10 USD $1.38512
≥100 USD $1.344288
≥500 USD $1.33056
≥1000 USD $1.234992
≥3000 USD $1.21447
Inventory: 2803
Minimum: 1
-
+
Technical Details
Technical
Operating Supply Voltage 250V
UL Flammability Code 94V-0
Contact Gender Female
Approval Agency UL
Reliability COMMERCIAL
Contact Finish Gold or Gold-Palladium
Reference Standard UL
Current Rating 1A
Depth 7.49mm
Orientation Vertical
Total Number of Contacts 16
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Voltage - Rated 250V
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 16
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key
Series AMP-Latch
Published 1999
Packaging Bulk
Mating Connector Lock Without
Wire Type Ribbon Cable
Insulation Diameter 939.8 μm
Circuit Application Signal
Contact Current Rating 1A
Withdrawl Force-Min .417 N
Insertion Force-Max 3.336 N
Cable Termination IDC
Durability 150 Cycles
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 1000VDC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Wire Gauge 26-28 AWG
Contact Resistance 15mOhm
Rated Current (Signal) 1A
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 4 Weeks
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Plating Thickness 760 nm
Contact Finish Thickness 30.0μin 0.76μm
Width 7.49046mm
Length 24.89mm
Height 15.16mm
