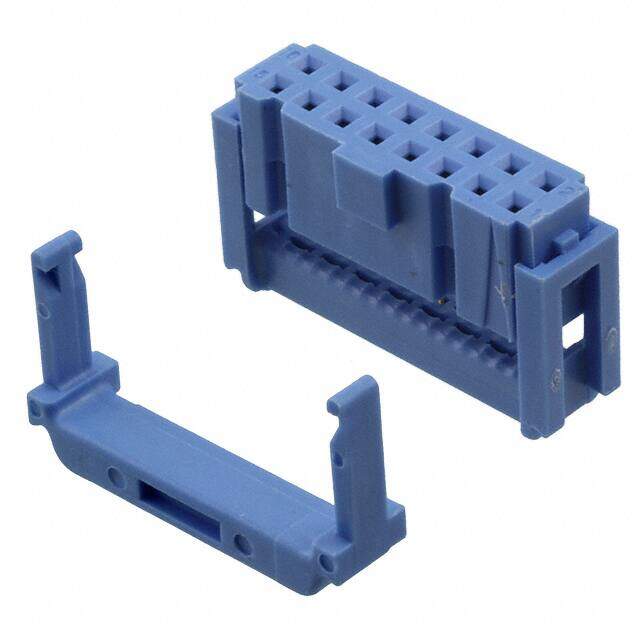

1658527-7
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 16 POS RECPT 30AU
PDF
/
Buying Options
Total Price: USD $3.28
Unit Price: USD $3.2824
≥1 USD $3.2824
≥10 USD $2.881375
≥100 USD $2.597742
≥500 USD $2.134906
Inventory: 643
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Brass, Copper
Mount Cable, Free Hanging, Through Hole
Mounting Type Free Hanging (In-Line)
Material Glass, Thermoplastic
Housing Material Thermoplastic
Technical
Packaging Bulk
Published 1998
Series 622
Feature Feed Through, Polarizing Key, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
ECCN Code EAR99
Connector Type Receptacle
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Blue
Number of Rows 2
Voltage - Rated 500V
Additional Feature POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 16
Orientation Right Angle
Depth 7.05mm
Current Rating 1A
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Lead Pitch 2.54mm
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 1A
Contact Resistance 10mOhm
Wire Gauge 26-28 AWG, Stranded or Solid
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 700VAC V
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 16
Cable Termination IDC
Contact Current Rating 1A
Circuit Application Signal
Wire Type Ribbon Cable
Mating Connector Lock Without
Dimensions
Height 5.08mm
Length 10.16mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
