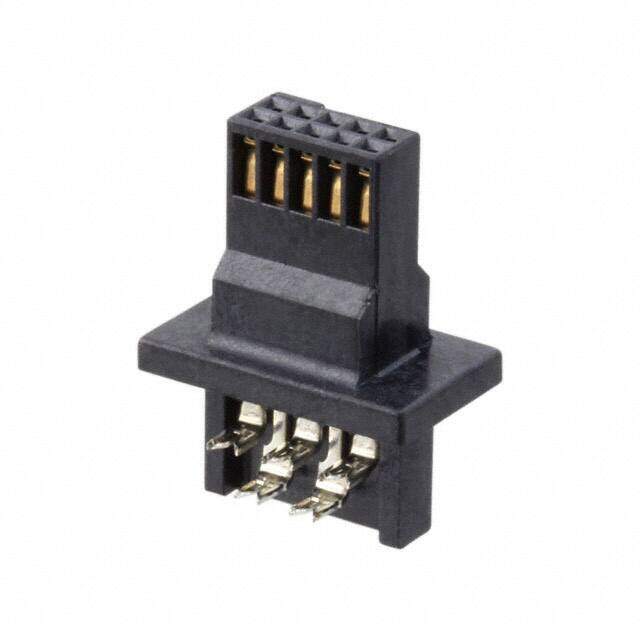

111672-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 10P RECEPTACLE
PDF
/
Buying Options
Total Price: USD $11.39
Unit Price: USD $11.3872
≥1 USD $11.3872
≥10 USD $10.3004
≥100 USD $10.028128
≥500 USD $9.646736
≥1000 USD $8.93816
≥3000 USD $8.883706
Inventory: 1963
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polymer
Underplate Material Nickel
Technical
Packaging Tube
Published 2005
Series AMPMODU 50/50 Grid
JESD-609 Code e0
Feature Closed End
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.050 1.27mm
Total Number of Contacts 10
Orientation Straight
Depth 15.94mm
Current Rating 500mA
Contact Finish Gold
Voltage - Rated AC 30V
Reliability COMMERCIAL
Approval Agency CSA
Contact Gender Female
Operating Supply Voltage 30V
Rated Current (Signal) 0.5A
Wire Gauge 28 AWG
Insulation Resistance 5GOhm
Row Spacing 0.050 (1.27mm)
ELV Non-Compliant
Max Voltage Rating (AC) 30V
Dielectric Withstanding Voltage 300VAC V
Wire/Cable Type Ribbon
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Withdrawl Force-Min .139 N
Sealable No
Circuit Application Signal
Wire Type Ribbon Cable
Mating Connector Lock Without
Dimensions
Height 15.9512mm
Length 11.99mm
Width 7.21mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 1.27μm
Compliance
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
