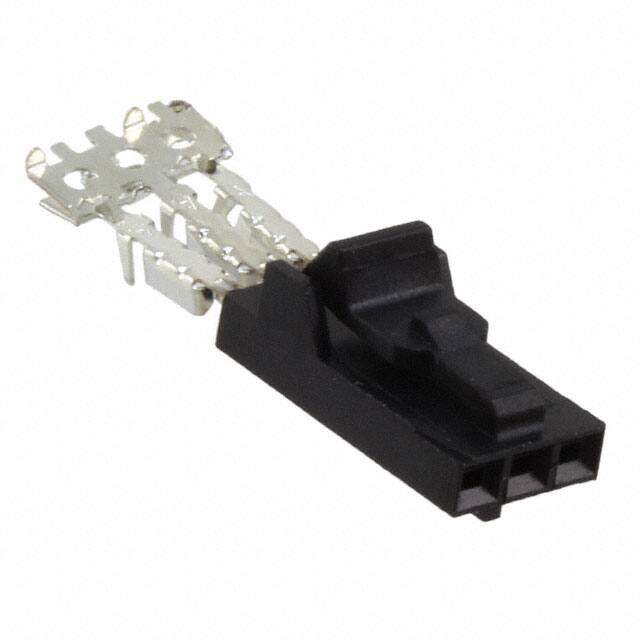

103961-2 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL
PDF
/
Inventory: 6981
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 60.96mm
Height 5.08mm

Technical

Wire Type Discrete or Ribbon Cable
Insulation Diameter 1.37 mm
Mating Retention With
Contact Current Rating 3A
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Wire/Cable Type Discrete
ELV Non-Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Wire Gauge 26-30 AWG
Contact Resistance 15mOhm
Operating Supply Voltage 267V
Housing Color Black
Contact Gender Female
Number of Contacts 3
Approval Agency CSA
Contact Finish Gold
Current Rating 3A
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Female Socket
Fastening Type Latch Lock
Number of Rows 1
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 3
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End
Series AMPMODU MTE
Published 2009
Packaging Tube

Physical

Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Lead, Tin
Contact Material Bronze

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 28 Weeks
