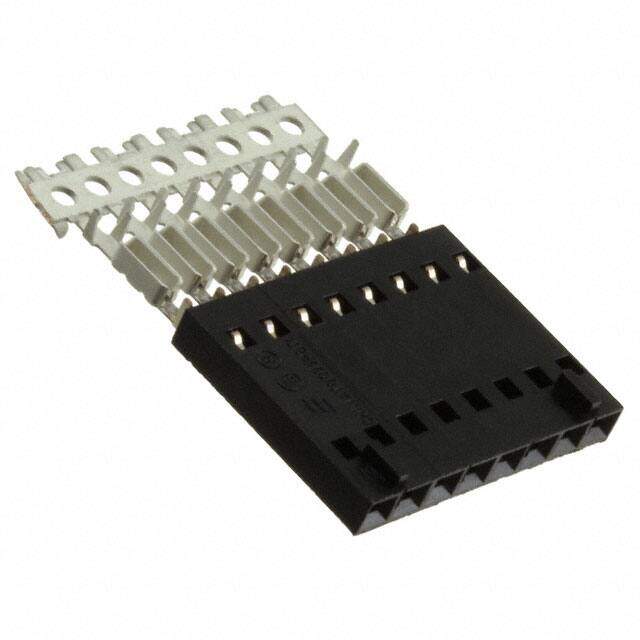

103960-7
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL
PDF
/
Inventory: 6421
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Lead, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Tube
Published 2009
Series AMPMODU MTE
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 1
Fastening Type Latch Lock
Contact Type Female Socket
Pitch 0.100 2.54mm
Wire Type Discrete or Ribbon Cable
Insulation Diameter 1.37 mm
Mating Retention With
Contact Current Rating 3A
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Wire/Cable Type Ribbon
ELV Non-Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Wire Gauge 26-30 AWG
Contact Resistance 15mOhm
Operating Supply Voltage 267V
Housing Color Black
Contact Gender Female
Number of Contacts 8
Approval Agency CSA
Contact Finish Gold
Current Rating 3A
Depth 15.24mm
Orientation Straight
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness 15.0μin 0.38μm
Length 40.64mm
Height 5.08mm
