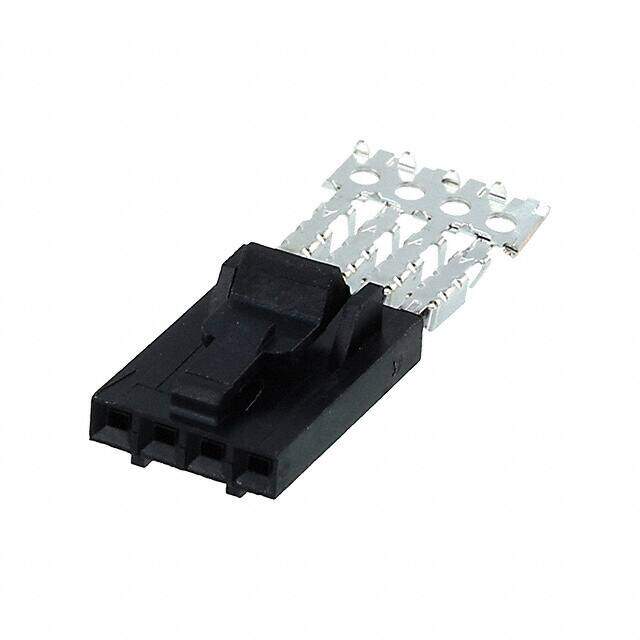

103960-3
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings RCPT 4 POS 15 AU
PDF
/
Buying Options
Total Price: USD $1.52
Unit Price: USD $1.51579
≥1 USD $1.51579
≥10 USD $1.429989
≥100 USD $1.349054
≥500 USD $1.272687
≥1000 USD $1.200647
Inventory: 1193
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Physical
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Tube
Published 2009
Series AMPMODU MTE
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC, IDT
Connector Type Receptacle
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 1
Gender Receptacle
Fastening Type Latch Lock
Contact Type Female Socket
Pitch 0.100 2.54mm
Orientation Straight
Depth 15.24mm
Current Rating 3A
Contact Finish Gold
Approval Agency CSA
Number of Contacts 4
Contact Gender Female
Housing Color Black
Operating Supply Voltage 267V
Contact Resistance 15mOhm
Wire Gauge 26-30 AWG
Insulation Resistance 5GOhm
Row Spacing 2.54 mm
ELV Non-Compliant
Wire/Cable Type Ribbon
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Contact Current Rating 3A
Mating Retention With
Insulation Diameter 1.37 mm
Wire Type Discrete or Ribbon Cable
Dimensions
Height 5.08mm
Length 50.55mm
Contact Finish Thickness 15.0μin 0.38μm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
