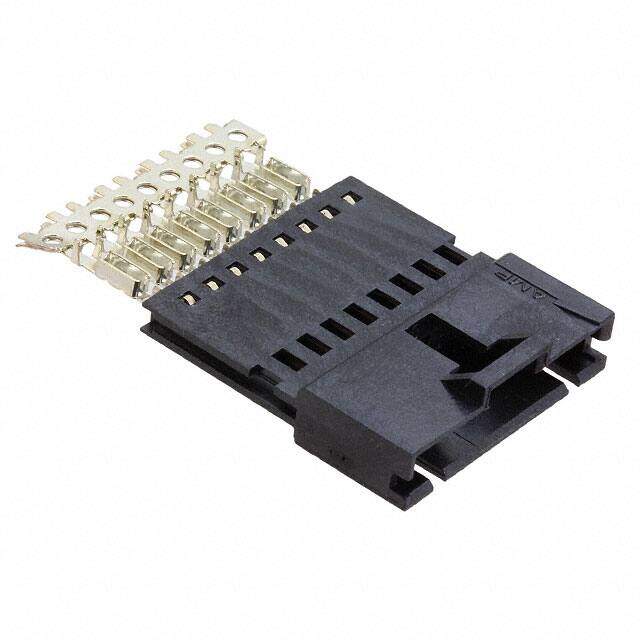

103948-7 image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description Headers & Wire Housings 2X8 MTE SHRD PIN SR LTCH 0.100
PDF
/
Inventory: 3671
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Not Applicable
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Contact Finish Thickness 15.0μin 0.38μm
Length 22.73mm
Height 6.604mm

Technical

Wire Type Ribbon Cable
Mating Retention With
Contact Current Rating 3A
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 30 AWG
Wire/Cable Type Ribbon
ELV Non-Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Wire Gauge 26-30 AWG
Contact Resistance 15mOhm
Operating Supply Voltage 267V
Housing Color Black
Contact Gender Male
Number of Contacts 8
Approval Agency CSA
Contact Finish Gold
Current Rating 3A
Depth 24.13mm
Orientation Straight
Pitch 0.100 2.54mm
Contact Type Male Pin
Voltage - Rated 600V
Number of Rows 1
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 8
Connector Type Plug
Termination IDC, IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Closed End
Series AMPMODU MTE
Published 2005
Packaging Tube

Physical

Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Bronze

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 day ago)
Factory Lead Time 25 Weeks
