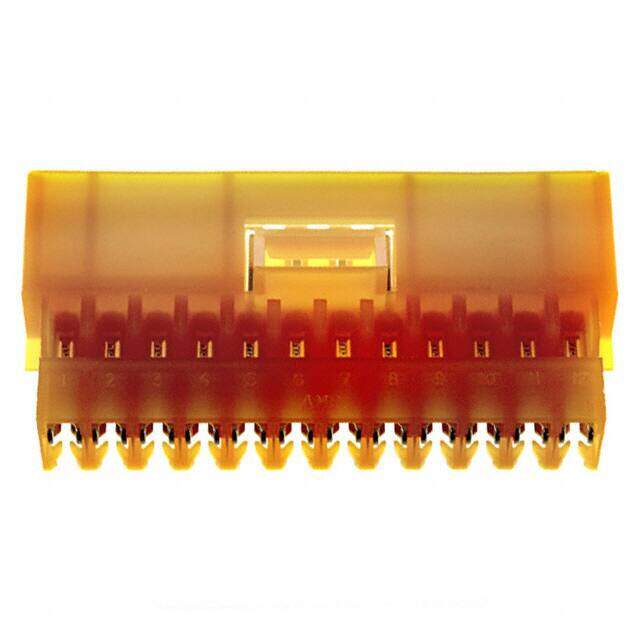

1-641435-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 12P IDC 18AWG TIN-LEAD
PDF
/
Inventory: 8101
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 80μin
Contact Finish Thickness 80.0μin 2.03μm
Width 25.7mm
Length 51.5mm
Height 12.4mm
Technical
Wire Type Discrete or Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 18 AWG
Durability 25 Cycles
Wire/Cable Type Discrete
Polarization Key POLARIZED HOUSING
Termination Type IDC
ELV Non-Compliant
Insulation Resistance 5000000000Ohm
Wire Gauge 18 AWG
Contact Resistance 7mOhm
Rated Current (Signal) 7A
Housing Color Orange, White
UL Flammability Code 94V-2
Operating Temperature (Min) -55°C
Contact Gender Male
Body Breadth 0.487 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shrouding Yes
Reliability COMMERCIAL
Contact Finish Tin-Lead
Reference Standard UL, CSA
Current Rating 7A
Total Number of Contacts 12
Pitch 0.156 3.96mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Voltage - Rated 600V
Number of Rows 1
Color Orange
Number of Positions 12
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Closed End
JESD-609 Code e0
Series MTA-156
Published 2004
Packaging Bulk
Physical
Housing Material Nylon
Contact Shape Square
Mounting Type Free Hanging (In-Line), Right Angle
Mount Free Hanging
Contact Plating Lead, Tin
Contact Material COPPER ALLOY
