1-640427-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

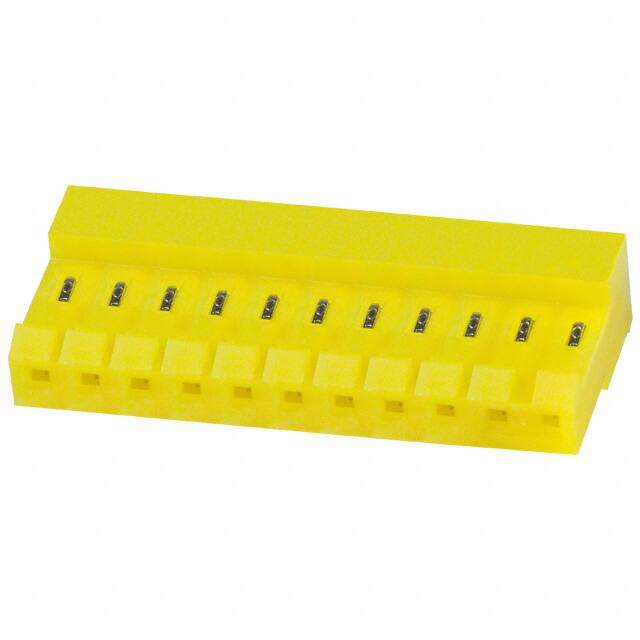

CONN RCPT 11P IDC 20AWG TIN-LEAD
PDF
/
Inventory: 6268
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Not Applicable
Flammability Rating UL94 V-2
RoHS Status Non-RoHS Compliant
Dimensions
Plating Thickness 5.08μm
Contact Finish Thickness 80.0μin 2.03μm
Width 9.02mm
Length 43.59mm
Height 9.02mm
Technical
Wire Type Discrete or Ribbon Cable
Insulation Diameter 2.41 mm
Contact Current Rating 7A
Withdrawl Force-Min .8896 N
Insertion Force-Max 8.0064 N
Cable Termination IDC
Wire/Cable Gauge 20 AWG
Durability 25 Cycles
Wire/Cable Type Discrete
Dielectric Withstanding Voltage 2200VAC V
Polarization Key POLARIZED HOUSING
Termination Type IDC
Max Voltage Rating (AC) 600V
ELV Non-Compliant
Wire Gauge 20 AWG
Contact Resistance 3mOhm
Rated Current (Signal) 7A
UL Flammability Code 94V-2
Contact Gender Female
Body Breadth 0.355 inch
Shrouding No
Approval Agency CSA
Reliability COMMERCIAL
Voltage - Rated AC 600V
Contact Finish Tin-Lead
Current Rating 7A
Depth 9.02mm
Orientation Right Angle
Total Number of Contacts 11
Pitch 0.156 3.96mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Fastening Type Locking Ramp
HTS Code 8536.69.40.40
Number of Rows 1
Color Yellow
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 11
Connector Type Receptacle
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
Feature Closed End
JESD-609 Code e0
Series MTA-156
Published 2003
Packaging Bulk
Physical
Housing Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Contact Material COPPER ALLOY
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
