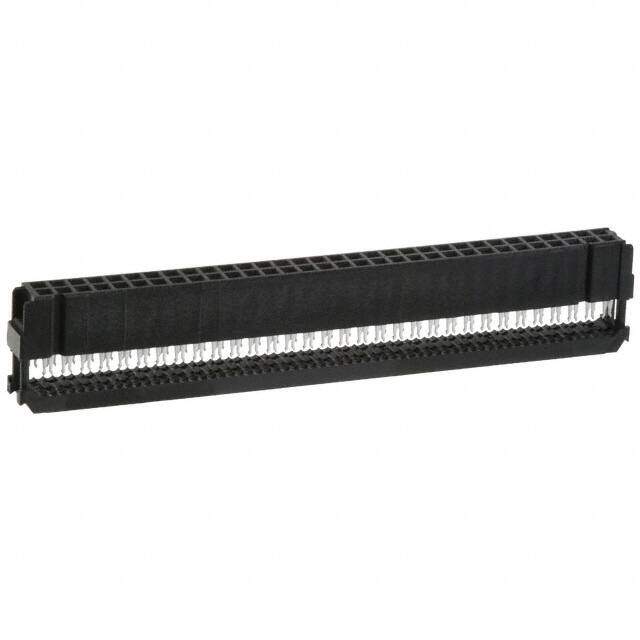

1-499997-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings NOVO RECEPT 64P
PDF
/
Inventory: 9097
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Connector Type Receptacle
Number of Positions 64
Color Black
Number of Rows 2
Additional Feature MILITARY POLARIZATION
Subcategory Headers and Edge Type Connectors
Contact Type Forked
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Feed Through
Series AMP-Latch
Published 1997
Packaging Bulk
Wire Type Ribbon Cable
Withdrawl Force-Min .417 N
Insertion Force-Max 3.336 N
Cable Termination IDC
Durability 75 Cycles
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 1000VDC V
ELV Non-Compliant
Body/Shell Style PLUG
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Wire Gauge 26-28 AWG
Contact Resistance 15mOhm
Rated Current (Signal) 1A
Operating Temperature (Min) -65°C
Contact Gender Female
Operating Temperature (Max) 105°C
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 1A
Total Number of Contacts 64
Pitch 0.100 2.54mm
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Bronze
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Plating Thickness 15μin
Contact Finish Thickness 15.0μin 0.38μm
Length 85.9mm
