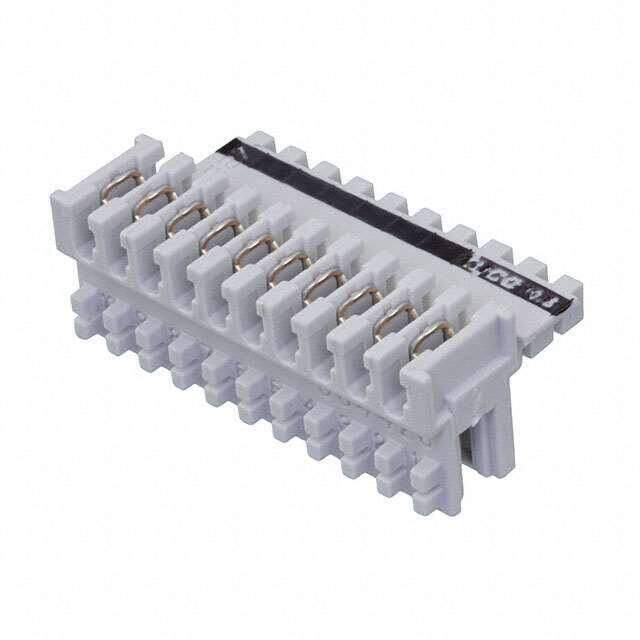

1-284932-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn IDC Connector RCP 10 POS 2.5mm IDT RA Cable Mount
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.560253
≥1 USD $0.560253
Inventory: 6728
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
PCB Thickness 1.4986mm
Plating Thickness 10μm
Length 27.4mm
Height 7.35mm
Technical
Preloaded Yes
Wire/Cable Diameter 1.27 mm
Insulation Diameter 1.2954 mm
Number of Power Positions 10
Circuit Application Signal
Contact Current Rating 2A
Cable Termination IDC
ELV Compliant
Wire Gauge 22-24 AWG
Operating Supply Voltage 63V
Housing Color Black
Number of Contacts 10
Contact Finish Tin
Current Rating 2A
Depth 10.1mm
Orientation Right Angle
Pitch 0.098 2.50mm
Contact Type Female Blade Socket
Gender Female
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 110°C
Number of Positions 10
Connector Type Receptacle
Termination IDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mates to PCB
Series DuoPlug
Published 2009
Packaging Tray
Physical
PCB Mounting Orientation Right Angle
Housing Material PBT
Mounting Type Free Hanging (In-Line)
Contact Plating Tin
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 weeks ago)
Factory Lead Time 14 Weeks
