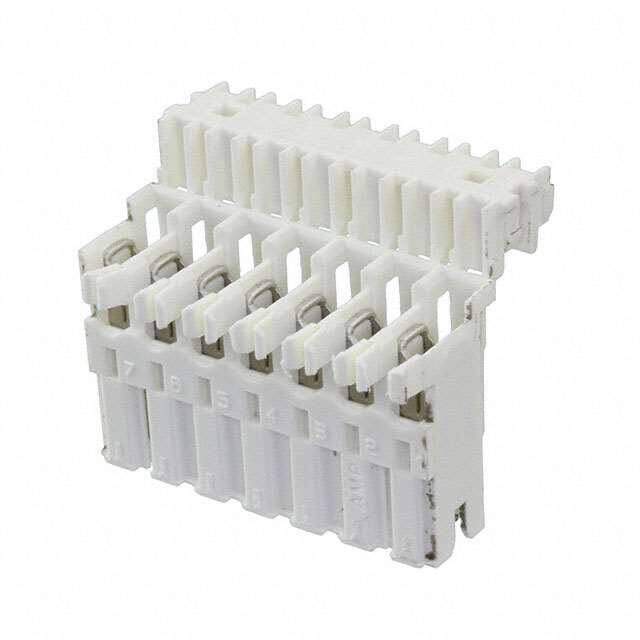

1-282047-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Headers & Wire Housings AMP MONO-SHAPE P.C.B.CONN7P.GL
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.86416
≥100 USD $0.83248
≥500 USD $0.82434
≥1000 USD $0.743943
≥3000 USD $0.719822
Inventory: 186
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Contact Material Brass
Contact Plating Tin
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
PCB Mount Alignment Without
Technical
Packaging Tray
Published 2004
Series Mark I
Feature Mates to PCB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 7
Color Natural
Number of Rows 1
Contact Type Female Blade Socket
Pitch 0.197 5.00mm
Orientation Vertical
Current Rating 6A
Contact Finish Tin
Number of Contacts 7
Housing Color Natural
ELV Compliant
Plating Tin
Cable Termination IDC
Sealable No
Circuit Application Signal
Mating Retention With
Wire Type Discrete
Dimensions
Contact Finish Thickness 78.7μin 2.00μm
Contact Finish Thickness - Mating 2μm
Compliance
RoHS Status RoHS Compliant
