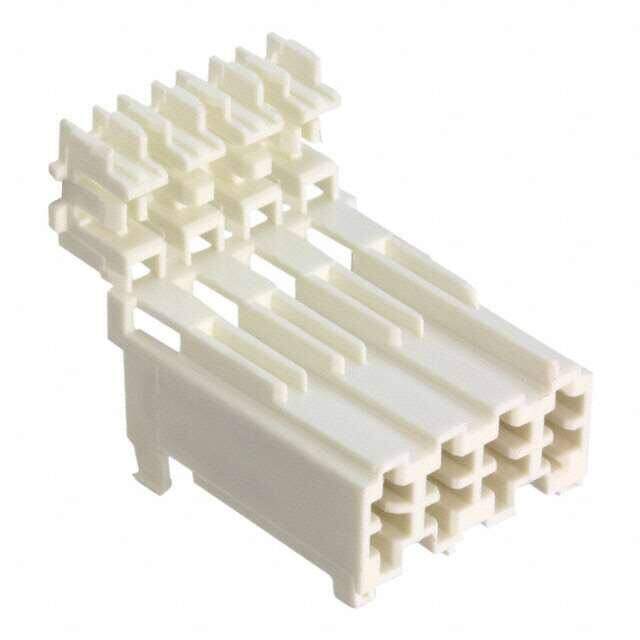

1-282004-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
AMP MONO-SHAPE TAB CONN 4P. G
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.60192
≥100 USD $0.599104
≥500 USD $0.57882
≥1000 USD $0.485302
≥3000 USD $0.429695
Inventory: 1319
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Material Brass
Contact Plating Tin
Mount Free Hanging
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material Nylon
Technical
Packaging Tray
Published 2004
Series Mark I
Feature Closed End
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Plug
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Natural
Number of Rows 1
Voltage - Rated 380V
Fastening Type Latch Lock
Contact Type Tab
Pitch 0.197 5.00mm
Contact Finish Tin
Number of Contacts 4
Housing Color Natural
Operating Supply Voltage 380V
ELV Compliant
Wire/Cable Type Discrete
Cable Termination IDC
Sealable No
Contact Current Rating 16A
Mating Retention With
Wire Type Discrete
Contact Retention With
Mating Alignment With
Dimensions
Height 9.906mm
Length 19.812mm
Width 13.97mm
Plating Thickness 2μm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
