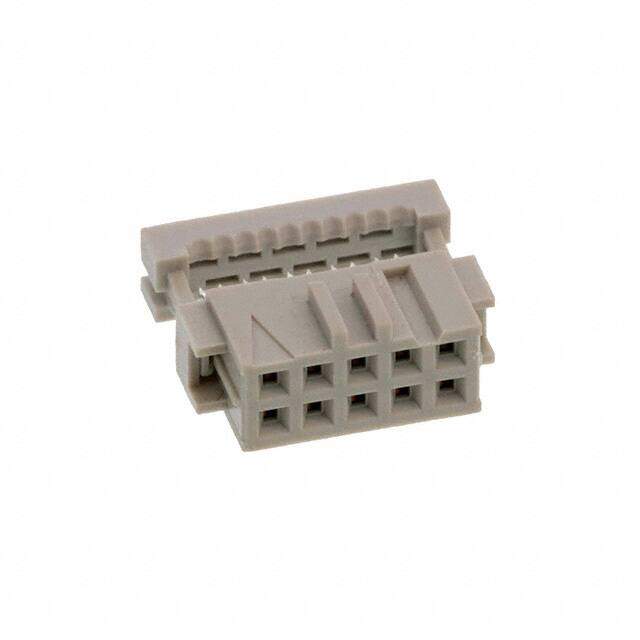

1-215915-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount T/R
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.0648
≥1 USD $1.0648
≥10 USD $0.99528
≥100 USD $0.958496
≥500 USD $0.949344
≥1000 USD $0.85668
≥3000 USD $0.82889
Inventory: 7341
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Plating Thickness 31μin
Contact Finish Thickness 31.5μin 0.80μm
Length 17.3mm
Technical
Mating Connector Lock With
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Circuit Application Signal
Cable Termination IDC
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
ELV Compliant
Row Spacing 0.100 (2.54mm)
Rated Current (Signal) 1A
Housing Color Grey
UL Flammability Code 94V-0
Operating Temperature (Min) -65°C
Contact Finish Gold
Reference Standard UL
Current Rating 1A
Depth 7.3mm
Orientation Right Angle
Total Number of Contacts 10
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.40
Additional Feature LATCHED
Number of Rows 2
Color Gray
Number of Positions 10
Connector Type Receptacle
ECCN Code EAR99
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key
JESD-609 Code e3
Series AMP-Latch
Published 2009
Packaging Tape & Reel (TR)
Physical
Housing Material Polyester
Mounting Type Free Hanging (In-Line), Right Angle
Mount Cable
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 10 Weeks
