1-1658621-0
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

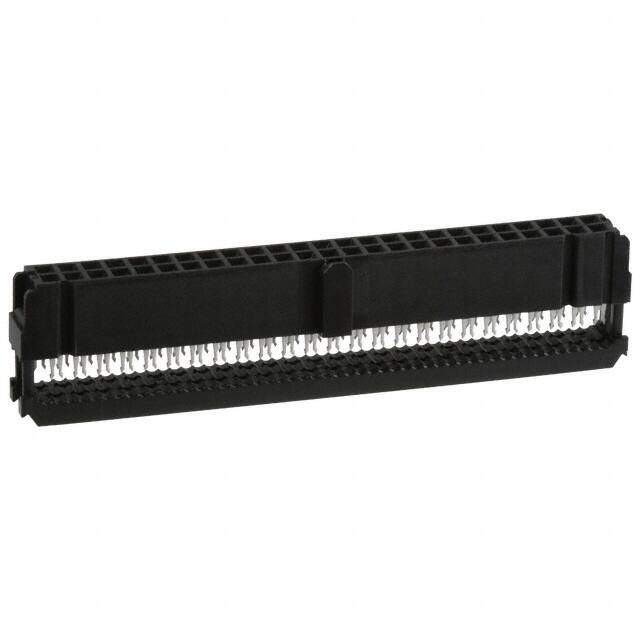

CONN IDC SKT 50POS W/POL 15 GOLD
PDF
/
Buying Options
Total Price: USD $1.51
Unit Price: USD $1.508522
≥1 USD $1.508522
≥10 USD $1.311587
≥50 USD $1.186862
Inventory: 17
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Plating Thickness 1.27μm
Contact Finish Thickness 15.0μin 0.38μm
Width 7.49046mm
Length 68.07mm
Height 15.16mm
Technical
Mating Connector Lock Without
Wire Type Ribbon Cable
Insulation Diameter 939.8 μm
Circuit Application Signal
Contact Current Rating 1A
Withdrawl Force-Min .417 N
Insertion Force-Max 3.336 N
Cable Termination IDC
Max Voltage Rating (DC) 125V
Durability 75 Cycles
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 1000VDC V
Polarization Key POLARIZED HOUSING
Max Voltage Rating (AC) 250V
ELV Compliant
Row Spacing 0.100 (2.54mm)
Insulation Resistance 5GOhm
Wire Gauge 26-28 AWG
Contact Resistance 20mOhm
Rated Current (Signal) 1A
Operating Supply Voltage 250V
UL Flammability Code 94V-0
Contact Gender Female
Approval Agency UL
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Current Rating 1A
Depth 7.49mm
Orientation Vertical
Total Number of Contacts 50
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Forked
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Color Black
Min Operating Temperature -65°C
Max Operating Temperature 105°C
Number of Positions 50
Connector Type Receptacle
Termination IDT, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
JESD-609 Code e3
Series AMP-Latch
Published 1999
Packaging Tube
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging, Through Hole
Contact Plating Tin
Contact Material Bronze
