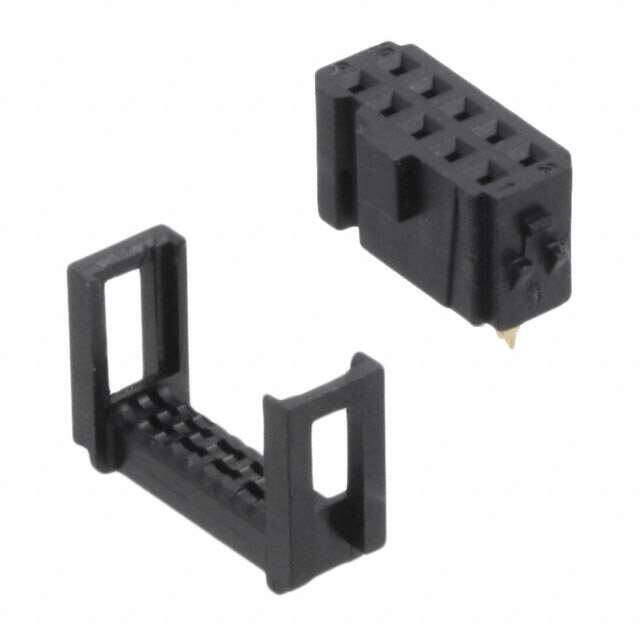

1-1658528-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 10P IDC 26-28AWG GOLD
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9656
≥1 USD $2.9656
≥10 USD $2.64
≥100 USD $2.626272
≥500 USD $2.599194
≥1000 USD $2.343317
≥3000 USD $2.329844
Inventory: 789
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness 15.0μin 0.38μm
Length 17.2mm
Technical
Mating Connector Lock Without
Wire Type Ribbon Cable
Circuit Application Signal
Cable Termination IDC
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 26 AWG
Wire/Cable Type Ribbon
Row Spacing 0.100 (2.54mm)
Wire Gauge 26-28 AWG, Stranded or Solid
UL Flammability Code 94V-0
Contact Gender Female
Contact Finish Gold
Current Rating 1A
Depth 7.05mm
Orientation Right Angle
Total Number of Contacts 10
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature POLARIZED
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 10
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series AMP-Latch
Published 2008
Packaging Bulk
Physical
Housing Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Bronze
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 months ago)
Factory Lead Time 11 Weeks
