1-1658526-9
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

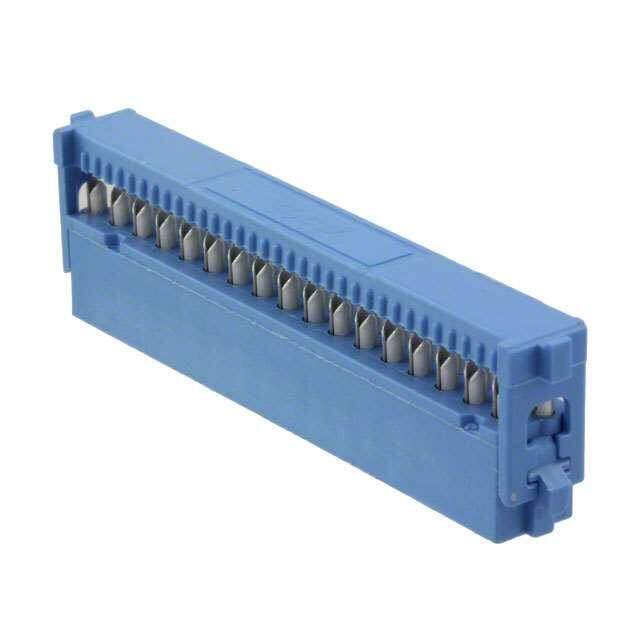

TE CONNECTIVITY / AMP 1-1658526-9Wire-To-Board Connector, 609 Series, IDC / IDT, Receptacle, 34 Contacts, 2.54 mm
PDF
/
Buying Options
Total Price: USD $12.69
Unit Price: USD $12.6896
≥1 USD $12.6896
≥10 USD $11.47872
≥100 USD $11.175375
≥500 USD $10.750142
≥1000 USD $9.899894
Inventory: 1154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic
Technical
Packaging Bulk
Published 2008
Series AMP-Latch
JESD-609 Code e3
Feature Polarizing Key, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Receptacle
Number of Positions 34
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Blue
Number of Rows 2
Additional Feature POLARIZED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 34
Orientation Right Angle
Depth 7.05mm
Current Rating 1A
Contact Finish Gold
Lead Pitch 2.54mm
Contact Gender Female
UL Flammability Code 94V-0
Wire Gauge 28-30 AWG
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Wire/Cable Type Ribbon
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 28 AWG
Cable Termination IDC
Contact Current Rating 1A
Circuit Application Signal
Wire Type Ribbon Cable
Mating Connector Lock Without
Dimensions
Length 47.65mm
Contact Finish Thickness 30.0μin 0.76μm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
