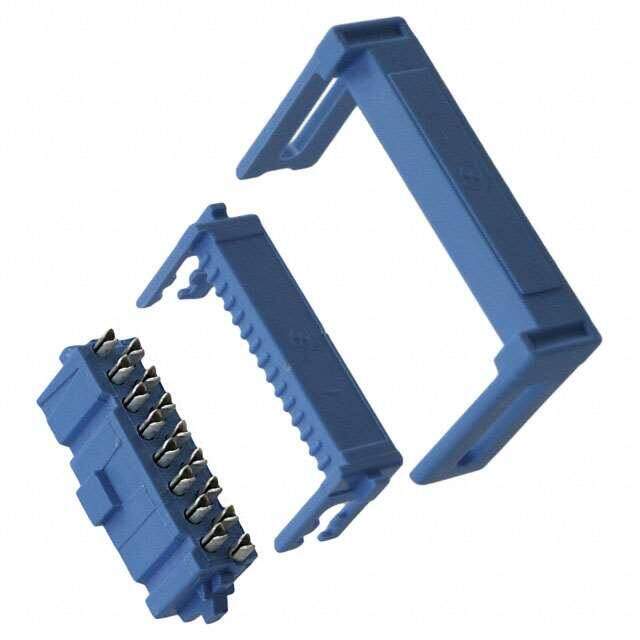

1-1658526-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 16P IDC 28-30AWG GOLD
PDF
/
Buying Options
Total Price: USD $7.49
Unit Price: USD $7.4888
≥1 USD $7.4888
≥10 USD $6.52784
≥100 USD $6.356416
≥500 USD $6.184587
≥1000 USD $5.806601
≥3000 USD $5.772272
Inventory: 1330
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Contact Material BERYLLIUM COPPER
Mounting Type Free Hanging (In-Line)
Technical
Packaging Bulk
Published 2005
Series AMP-Latch
JESD-609 Code e3
Feature Polarizing Key, Strain Relief
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 16
Color Blue
Number of Rows 2
Additional Feature POLARIZED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 16
Current Rating 1A
Contact Finish Gold
Lead Pitch 2.54mm
UL Flammability Code 94V-0
Wire Gauge 28-30 AWG
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
Termination Type IDC
Cable Termination IDC
Circuit Application Signal
Wire Type Ribbon Cable
Mating Connector Lock Without
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Compliance
RoHS Status RoHS Compliant
