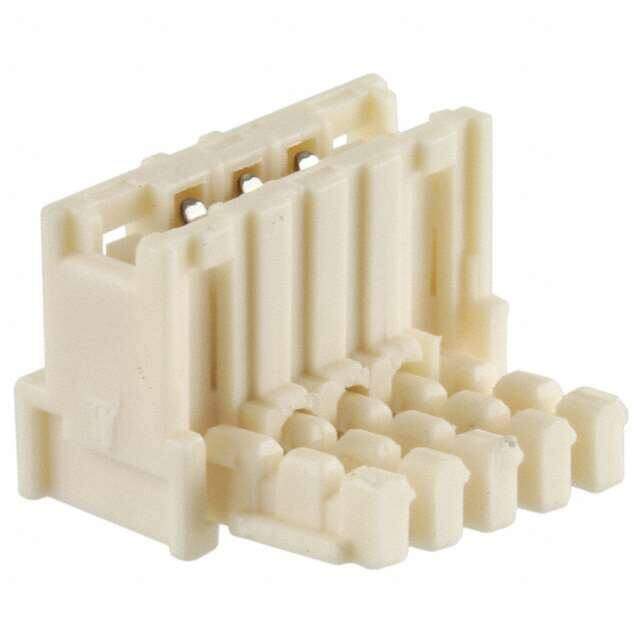

1-1355181-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 3POS IDC 22AWG TIN
PDF
/
Buying Options
Total Price: USD $0.17
Unit Price: USD $0.165691
≥1 USD $0.165691
≥10 USD $0.157773
≥100 USD $0.152601
Inventory: 20695
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Physical
Contact Plating Tin
Mounting Type Free Hanging (In-Line), Right Angle
Housing Material PBT
PCB Mounting Orientation Right Angle
Technical
Packaging Bulk
Published 2004
Series DuoPlug
Feature Mates to PCB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDC
Connector Type Receptacle
Number of Positions 3
Max Operating Temperature 110°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 1
Contact Type Female Socket
Pitch 0.098 2.50mm
Orientation Right Angle
Current Rating 2A
Contact Finish Tin
Number of Contacts 3
Housing Color Natural
Operating Supply Voltage 63V
Wire Gauge 22 AWG
ELV Compliant
Wire/Cable Gauge 22 AWG
Cable Termination IDC
Contact Current Rating 2A
Circuit Application Signal
Insulation Diameter 1.2954 mm
Wire/Cable Diameter 1.2954 mm
Wire Type Discrete
Preloaded Yes
Dimensions
Height 7.35mm
PCB Thickness 1.4986mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
