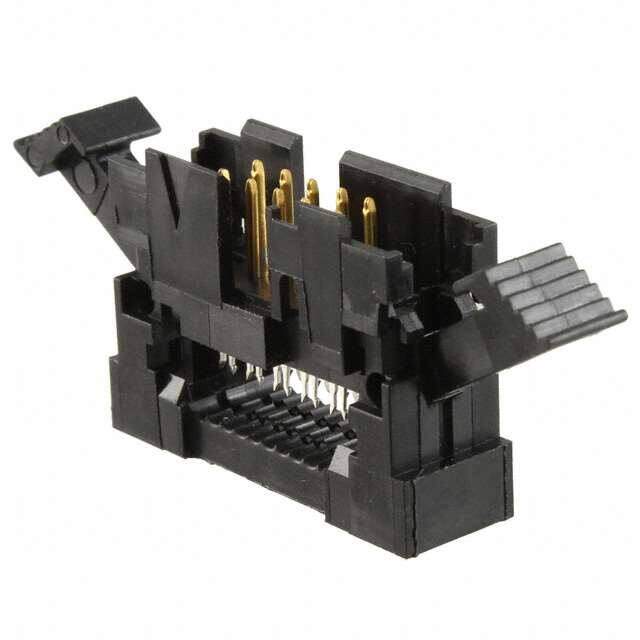

1-111492-5 image
Favorite
1-111492-5 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description Headers & Wire Housings 010 UNIV I/O 30DP NO EARS LTCH
PDF
/
Buying Options
Total Price: USD $11.6
Unit Price: USD $11.5984
≥1 USD $11.5984
≥10 USD $10.48872
≥100 USD $10.210816
≥500 USD $9.82241
≥1000 USD $9.10103
≥3000 USD $9.045573
Inventory: 405
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 5 days ago)

Physical

Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material POLYETHYLENE
Housing Material Thermoplastic

Technical

Packaging Tray
Published 1999
Series AMP-Latch
Feature Feed Through, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 10
Orientation Vertical
Depth 8.38mm
Current Rating 1A
Contact Finish Gold
Approval Agency UL
UL Flammability Code 94V-0
Lead Length 3.302mm
Empty Shell NO
Operating Supply Voltage 250V
Contact Resistance 15mOhm
Wire Gauge 26-28 AWG
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
ELV Compliant
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Cable Termination IDC
Contact Current Rating 1A
Circuit Application Signal
Insulation Diameter 970 μm
Mating Post Length 6.1mm
Wire Type Ribbon Cable
Mating Connector Lock Without
Shrouded End Dimension 3.81 mm

Dimensions

Height 23.749mm
Length 27.2288mm
Width 8.38mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 760 nm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
