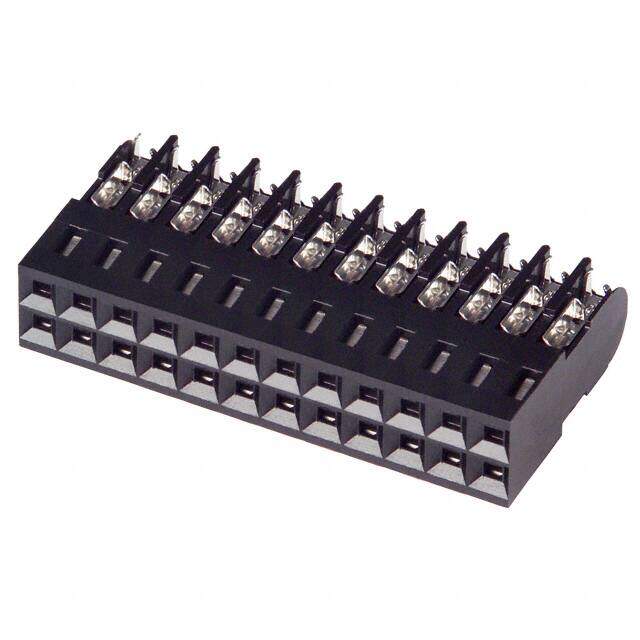

1-102448-0
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 24P IDC 20-22AWG GOLD
PDF
/
Buying Options
Total Price: USD $29.45
Unit Price: USD $29.454912
≥1 USD $29.454912
≥200 USD $11.753081
≥500 USD $11.360524
≥1000 USD $11.166215
Inventory: 1903
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Material PHOSPHOR BRONZE
Contact Plating Lead, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material PBT
Technical
Packaging Tray
Published 1997
Series AMPMODU MT
JESD-609 Code e0
Feature Closed End
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 24
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 24
Orientation Straight
Current Rating 3A
Contact Finish Gold
Reliability COMMERCIAL
Approval Agency CSA
Lead Pitch 2.54mm
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Body Depth 0.6 inch
Rated Current (Signal) 3A
Contact Resistance 15mOhm
Wire Gauge 20-22 AWG
Insulation Resistance 5GOhm
Row Spacing 0.100 (2.54mm)
ELV Non-Compliant
Termination Type IDC
Wire/Cable Type Discrete
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 20 AWG
Wire/Cable Gauge 20 AWG
Cable Termination IDC
Withdrawl Force-Min .417 N
Contact Current Rating 3A
Insulation Diameter 1.27 mm
Wire Type Discrete or Ribbon Cable
Dimensions
Height 6.1mm
Length 30.48mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Not Applicable
