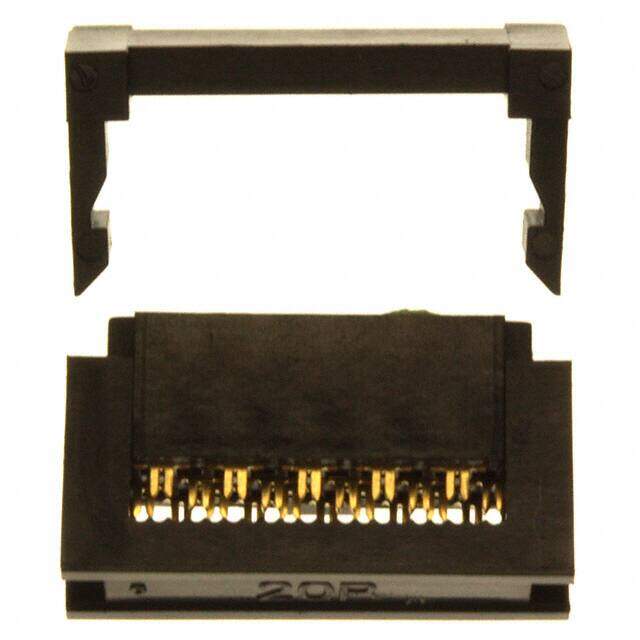

SFH413-PPPB-D10-ID-BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RCPT 20POS 1.27MM IDT GOLD
PDF
/
Buying Options
Total Price: USD $2.91
Unit Price: USD $2.9128
≥1 USD $2.9128
≥10 USD $2.64088
≥100 USD $2.32716
≥500 USD $1.978064
≥1000 USD $1.687162
≥3000 USD $1.662232
Inventory: 874
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material POLYBUTYLENE TEREPHTHALATE
Technical
Packaging Tray
Published 2009
Series SFH413
Feature Feed Through, Polarizing Key, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Header
Number of Positions 20
Color Black
Number of Rows 2
Contact Type Female Socket
Pitch 0.050 1.27mm
Total Number of Contacts 20
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.579 inch
Operating Temperature (Max) 105°C
Operating Temperature (Min) -40°C
Rated Current (Signal) 1A
Contact Resistance 30mOhm
Insulation Resistance 500000000Ohm
Row Spacing 0.100 (2.54mm)
Termination Type IDC
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 700VAC V
Wire/Cable Type Ribbon
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Contact Finish Thickness Flash
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
