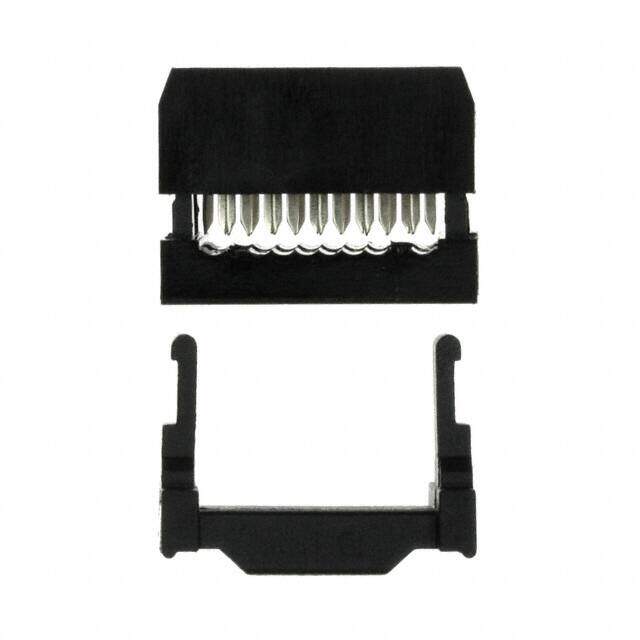

SFH213-PPPC-D05-ID-BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN HEADER 10POS IDC 28AWG GOLD
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.46112
≥100 USD $0.421696
≥500 USD $0.39666
≥1000 USD $0.380274
≥3000 USD $0.347178
Inventory: 17731
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.094 inch
Contact Finish Thickness Flash
Technical
Contact Design PREASSEM CONN
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED KEY
Termination Type IDC
Body/Shell Style RECEPTACLE
Row Spacing 0.100 (2.54mm)
Insulation Resistance 3000000000Ohm
Wire Gauge 28 AWG
Rated Current (Signal) 1A
Operating Temperature (Min) -40°C
Body Length or Diameter 0.68 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 10
Pitch 0.100 2.54mm
Contact Type Female Socket
Number of Rows 2
Color Black
Number of Positions 10
Connector Type Header
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key, Strain Relief
Series SFH213
Published 2012
Packaging Tray
Physical
Insulation Material POLYBUTYLENE TEREPHTHALATE
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 5 Weeks
