SFH21-PPPN-D25-ID-BK-M181
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

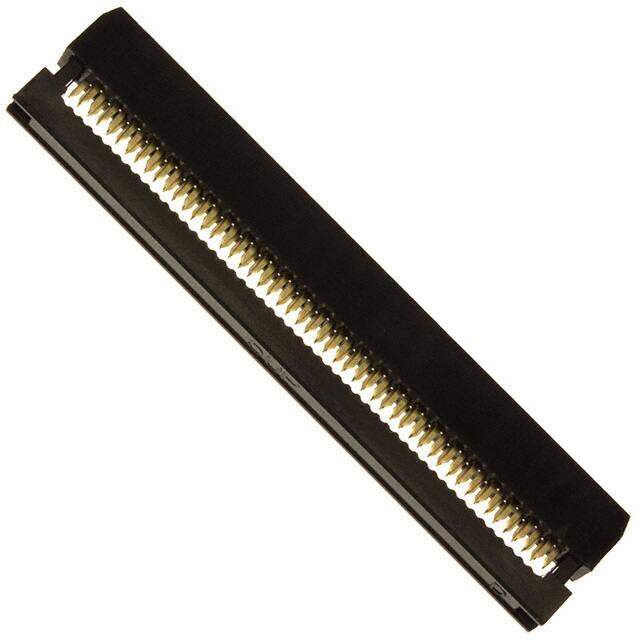

CONN HEADER 50POS IDC 26-28AWG
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.30328
≥100 USD $1.24784
≥500 USD $1.22012
≥1000 USD $1.16468
≥3000 USD $1.053738
Inventory: 942
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material POLYBUTYLENE TEREPHTHALATE
Technical
Packaging Tray
Published 2009
Series SFH21
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Header
Number of Positions 50
Color Black
Number of Rows 2
Contact Type Female Socket
Pitch 0.079 2.00mm
Total Number of Contacts 50
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Operating Temperature (Max) 85°C
Body Breadth 0.163 inch
Operating Temperature (Min) -45°C
Rated Current (Signal) 1A
Wire Gauge 26-28 AWG
Insulation Resistance 1000000000Ohm
Row Spacing 0.079 (2.00mm)
Termination Type IDC
Wire/Cable Type Ribbon
Cable Termination IDC
Wire Type Ribbon Cable
Contact Design PREASSEM CONN
Dimensions
Contact Finish Thickness Flash
Compliance
RoHS Status ROHS3 Compliant
