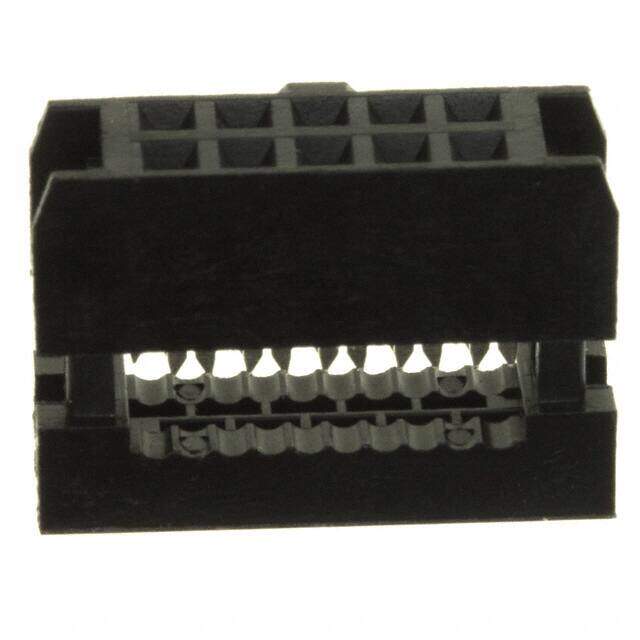

SFH21-PPPN-D05-ID-BK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN HEADER 10POS IDC 26-28AWG
PDF
/
Buying Options
Total Price: USD $0.88
Unit Price: USD $0.88
≥1 USD $0.88
≥10 USD $0.7436
≥100 USD $0.6677
≥500 USD $0.546304
≥1000 USD $0.485602
≥3000 USD $0.433576
Inventory: 4310
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material PHOSPHOR BRONZE
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material POLYBUTYLENE TEREPHTHALATE
Technical
Packaging Tray
Published 2009
Series SFH21
Feature Feed Through, Polarizing Key
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Color Black
Number of Rows 2
Contact Type Female Socket
Pitch 0.079 2.00mm
Total Number of Contacts 10
Reference Standard UL
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.601 inch
Operating Temperature (Max) 85°C
Body Breadth 0.187 inch
Operating Temperature (Min) -45°C
Rated Current (Signal) 1A
Wire Gauge 26-28 AWG
Row Spacing 0.079 (2.00mm)
Polarization Key POLARIZED KEY
Dielectric Withstanding Voltage 500VAC V
Wire/Cable Type Ribbon
Cable Termination IDC
Wire Type Ribbon Cable
Contact Design PREASSEM CONN
Dimensions
Contact Finish Thickness Flash
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
