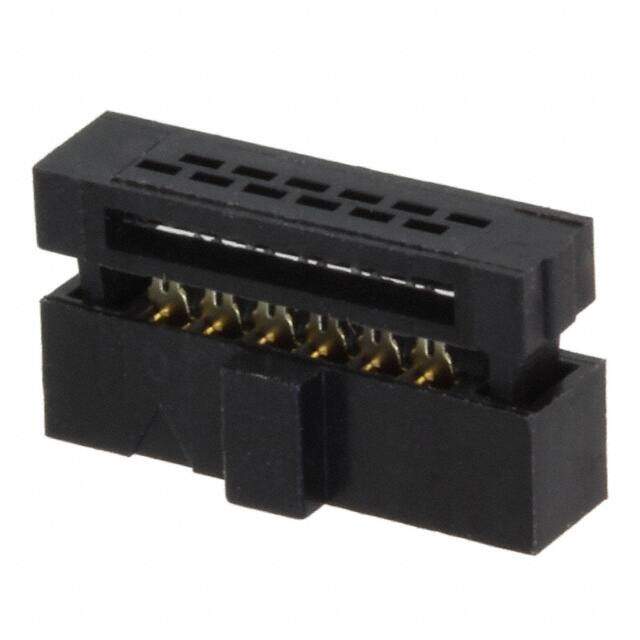

FFSD-06-01-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
SAMTEC FFSD-06-01-N Wire-To-Board Connector, FFSD Series, 12 Contacts, Receptacle, 1.27 mm, IDC / IDT, 2 Rows
PDF
/
Buying Options
Total Price: USD $2.38
Unit Price: USD $2.376
≥1 USD $2.376
≥10 USD $2.15512
≥100 USD $2.041248
≥500 USD $1.993904
≥1000 USD $1.898952
≥3000 USD $1.671648
Inventory: 5691
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Contact Finish Thickness 10.0μin 0.25μm
Length 11.81mm
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Max Current Rating 500mA
Row Spacing 0.050 (1.27mm)
Wire Gauge 30 AWG
Contact Resistance 10mOhm
Contact Finish Gold
Depth 3.05mm
Orientation Right Angle
Total Number of Contacts 12
Pitch 0.050 1.27mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature POLARIZED
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 12
Connector Type Receptacle
Termination IDT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Feed Through, Polarizing Key
JESD-609 Code e3
Series Tiger Eye? FFSD
Published 2014
Packaging Tube
Physical
Housing Material Polybutylene
Mounting Type Free Hanging (In-Line)
Contact Material Copper
Supply Chain
Factory Lead Time 4 Weeks
