1701197
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

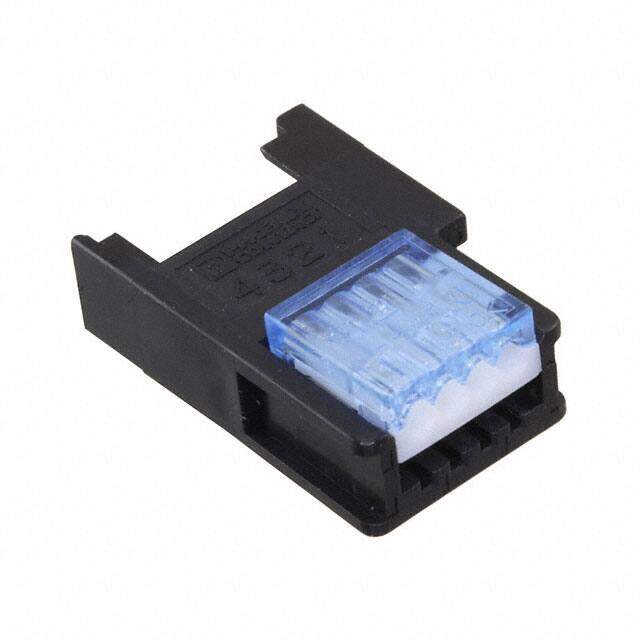

CONN PLUG 4POS IDC 20-24AWG GOLD
PDF
/
Inventory: 1258
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material Polybutylene
Housing Material Polycarbonate
Weight 1.82999g
Technical
Packaging Bulk
Published 2010
Series COMBICON HD
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire
ECCN Code EAR99
Connector Type Plug
Number of Positions 4
Color Blue
Number of Rows 1
Gender Female
Voltage - Rated 32V
Fastening Type Latch Holder
Contact Type Female Socket
Pitch 0.079 2.00mm
Orientation Straight
Reach Compliance Code unknown
Current Rating 3A
Wire Gauge 20-24 AWG
Max Current Rating 3A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Cable Termination IDC
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 4
Safety Approval UL
Wire Type Discrete
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
