1701171
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

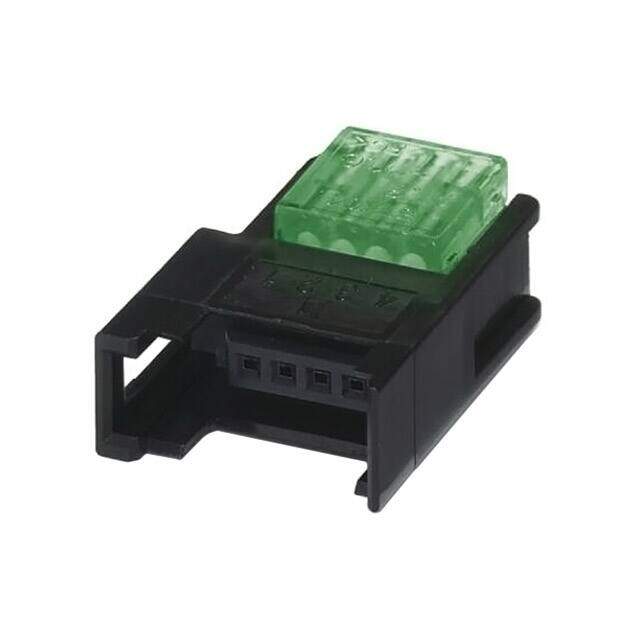

CONN PLUG 4POS IDC 20-24AWG GOLD
PDF
/
Inventory: 1436
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Length 15.8mm
Technical
Wire Type Discrete
Safety Approval UL
Number of Ways 4
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Decks 1
Cable Termination IDC
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Max Current Rating 3A
Wire Gauge 20-24 AWG
Current Rating 3A
Reach Compliance Code unknown
Depth 23.4mm
Orientation Straight
Pitch 0.079 2.00mm
Contact Type Female Socket
Fastening Type Latch Holder
Voltage - Rated 32V
Gender Female
Number of Rows 1
Color Green
Number of Positions 4
Connector Type Plug
ECCN Code EAR99
Termination Wire
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series COMBICON HD
Published 2011
Packaging Bulk
Physical
Weight 1.82999g
Housing Material Polycarbonate
Insulation Material Polybutylene
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Supply Chain
Factory Lead Time 6 Weeks
