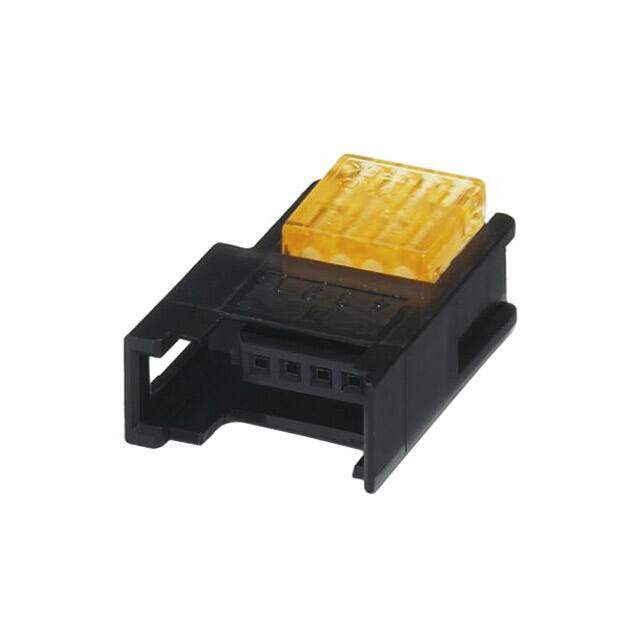

1701155
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN PLUG 4POS IDC 24-26AWG GOLD
PDF
/
Inventory: 1435
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material PBT
Housing Material Polycarbonate
Weight 2.139992g
Technical
Packaging Bulk
Published 2011
Series COMBICON HD
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Number of Positions 4
Color Orange
Number of Rows 1
Gender Female
Voltage - Rated 32V
Fastening Type Latch Holder
Contact Type Female Socket
Pitch 0.079 2.00mm
Orientation Straight
Depth 23.4mm
Current Rating 3A
Contact Finish Gold
Wire Gauge 24-26 AWG
Max Current Rating 3A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 24 AWG
Cable Termination IDC
Number of Decks 1
Terminal and Terminal Block Type BARRIER STRIP TERMINAL BLOCK
Number of Ways 4
Safety Approval UL
Wire Type Discrete
Dimensions
Length 15.8mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
