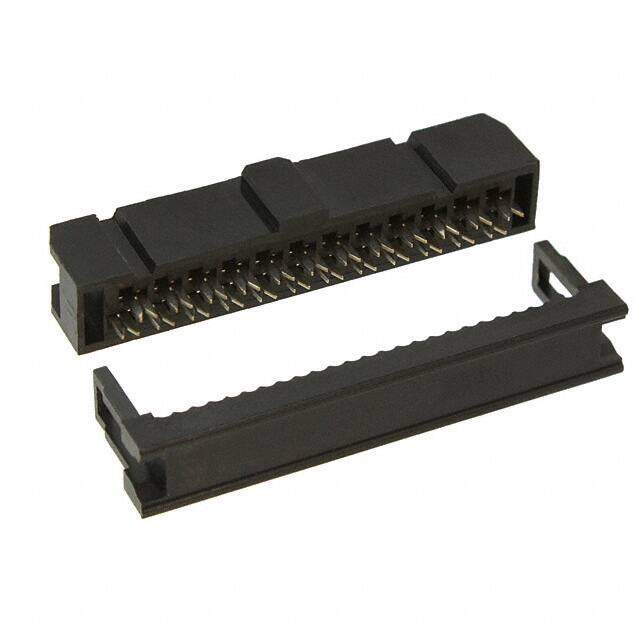

101-246
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN SOCKET IDC 24POS W/KEY GOLD
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.54912
≥100 USD $0.52624
≥500 USD $0.51524
≥1000 USD $0.492703
≥3000 USD $0.447955
Inventory: 564
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness Flash
Technical
Wire Type Ribbon Cable
Cable Termination IDC
Wire/Cable Type Ribbon
Dielectric Withstanding Voltage 1000VAC V
Polarization Key POLARIZED HOUSING
Termination Type IDC
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Contact Resistance 30mOhm
Rated Current (Signal) 1A
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Body Length or Diameter 1.381 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 24
Pitch 0.100 2.54mm
Contact Type Female Socket
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Color Black
Number of Positions 24
Connector Type Socket
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Feed Through, Polarizing Key
Series 101
Packaging Tray
Physical
Insulation Material GLASS FILLED POLYESTER
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material BRASS
Supply Chain
Factory Lead Time 9 Weeks
