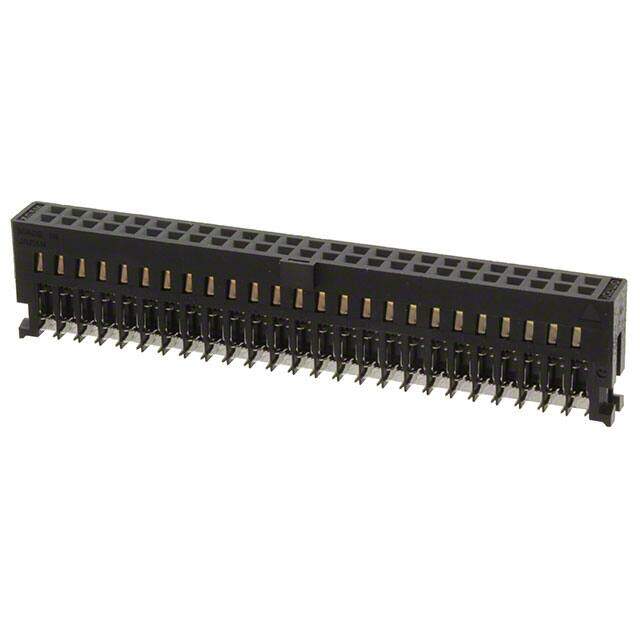

XG5M-5035-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
Conn Housing PL 50 POS 2.54mm Crimp ST
PDF
/
Buying Options
Total Price: USD $9.47
Unit Price: USD $9.4688
≥1 USD $9.4688
≥10 USD $7.82276
≥100 USD $7.61677
≥500 USD $5.640545
Inventory: 52
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Plating Thickness 6μin
Contact Finish Thickness 5.90μin 0.150μm
Technical
Contact Design PREASSEM CONN
Wire Type Discrete
Insertion Force-Max 1.946 N
Cable Termination IDC
Wire Gauge (Min) 26 AWG
Wire Gauge (Max) 28 AWG
Max Current Rating 3A
Termination Type IDC
Max Voltage Rating (AC) 300V
Row Spacing 0.100 (2.54mm)
Insulation Resistance 1000000000Ohm
Wire Gauge 26-28 AWG
Rated Current (Signal) 2A
Body Depth 0.567 inch
UL Flammability Code 94V-0
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Orientation Straight
Total Number of Contacts 50
Pitch 0.100 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory D Type Connectors
HTS Code 8536.69.40.40
Additional Feature POLARISED
Number of Rows 2
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 85°C
Number of Positions 50
Connector Type Socket
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Polarizing Tab
Series XG5
Published 2002
Packaging Bulk
Physical
Insulation Material GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material PHOSPHOR BRONZE
Supply Chain
Factory Lead Time 12 Weeks
