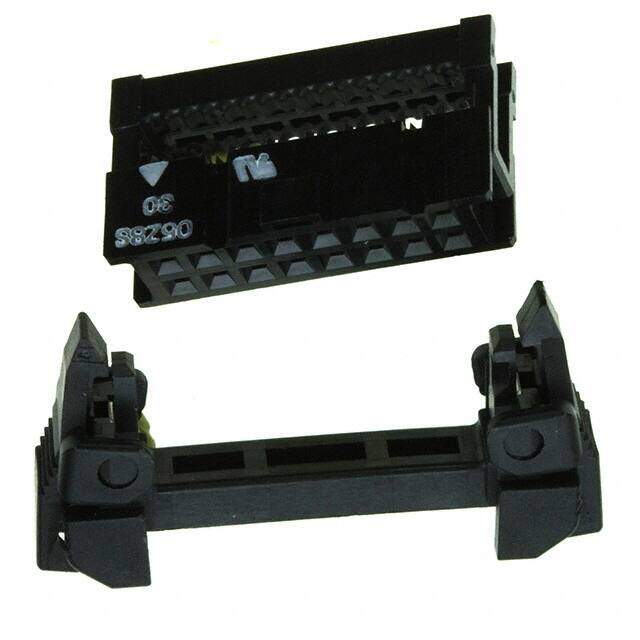

XG4M-1630-U
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN SOCKT 16POS STRN RLF W/LOCK
PDF
/
Buying Options
Total Price: USD $2.49
Unit Price: USD $2.4904
≥1 USD $2.4904
≥10 USD $2.26424
≥100 USD $2.144384
≥500 USD $2.09462
≥1000 USD $1.99481
≥3000 USD $1.74548
Inventory: 336
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Bronze
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polybutylene
Technical
Packaging Tray
Published 2002
Series XG4
JESD-609 Code e3
Feature Feed Through, Polarizing Key, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
Connector Type Receptacle
Number of Positions 16
Max Operating Temperature 105°C
Min Operating Temperature -55°C
Color Black
Number of Rows 2
Voltage - Rated 250V
Additional Feature STANDARD: MIL-C-83503
Fastening Type Latch Lock/Eject Hooks
Subcategory Headers and Edge Type Connectors
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 16
Orientation Right Angle
Reach Compliance Code unknown
Current Rating 1A
Contact Finish Gold
Reliability MIL-C-83503
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.37 inch
Contact Gender Female
UL Flammability Code 94V-0
Rated Current (Signal) 1A
Contact Resistance 20mOhm
Wire Gauge 28 AWG
Insulation Resistance 1GOhm
Row Spacing 0.100 (2.54mm)
Max Voltage Rating (AC) 250V
Max Current Rating 1A
Polarization Key POLARIZED KEY
Dielectric Withstanding Voltage 500VAC V
Wire/Cable Type Ribbon
Durability 50 Cycles
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Length 24.9mm
Contact Finish Thickness 5.90μin 0.150μm
Plating Thickness 6μin
Compliance
RoHS Status RoHS Compliant
